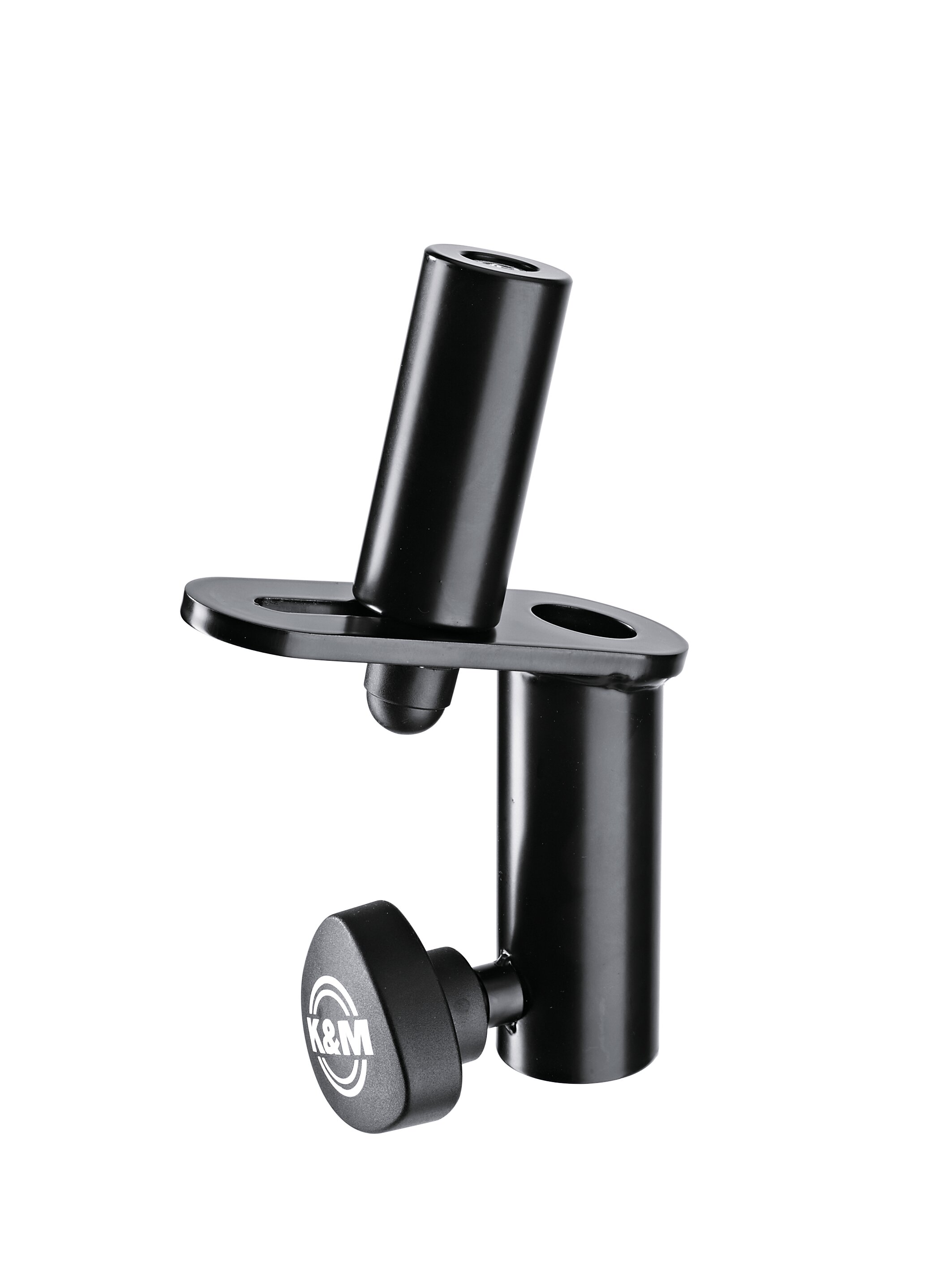

Speaker tilt connector
Speaker tilt connector with 15° inclination attachable to speaker stands and distance rods with a tube diameter of 35 mm. The depth of the tube intake is approx. 100 mm. Due to the off-centre positioning in connection with the 15° inclination, the center of gravity of the speaker cabinet moves back... more
Speaker tilt connector with 15° inclination attachable to speaker stands and distance rods with a tube diameter of 35 mm. The depth of the tube intake is approx. 100 mm. Due to the off-centre positioning in connection with the 15° inclination, the center of gravity of the speaker cabinet moves back to the centre and consequently provides more stability and steadiness for the stand or distance rod. The depth can be adjusted up to 50 mm. The speaker mounting bolt has a diameter of 35 mm and a height of 84 mm. Solid steel construction with robust powder coating. Convenient clamping screw for mounting on the speaker stand.
Technical Data
Angle of inclination
15°
EAN
4016842116034
Function
to slip on stand, to insert into speaker
Height
205 mm
Material
steel
Max. load capacity
25 kg
Special features
adjustment range mounting bolt: 50 mm
Suitable for tubing diameter of
35 mm
Type
black
Weight
1.2 kg
