23723

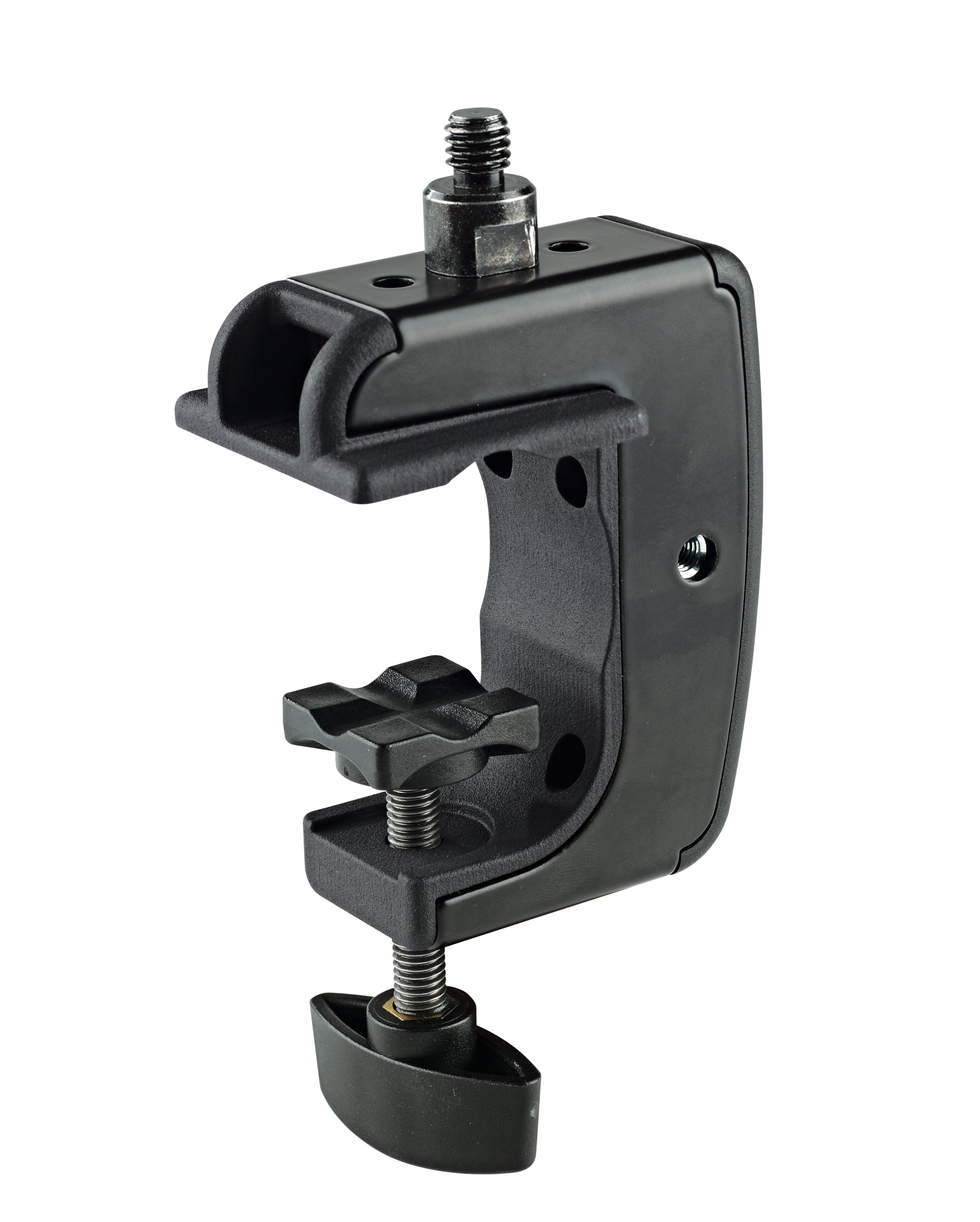

Universal clamp
The new table clamp with a 3/8“ threaded connector is a true all-rounder. The threaded bolt can be fixed in four different directions using the universal spanner included. The clamp can also be extended using additional or other threaded bolts (1/4“, 3/8“, 5/8“). Having a clamping range of 10 to 51... more
The new table clamp with a 3/8“ threaded connector is a true all-rounder. The threaded bolt can be fixed in four different directions using the universal spanner included. The clamp can also be extended using additional or other threaded bolts (1/4“, 3/8“, 5/8“). Having a clamping range of 10 to 51 mm the clamp is suitable for a wide spectrum of mounting. The stable metal construction with high quality plastic inserts guarantees a secure and strong hold. The specially shaped clamping parts allow the clamp to be used on smooth surfaces and round-shaped tubes.
Product variant:
23723-300-55
-
black 3/8"
Technical Data
Clamping range
10 to 51 mm / ø 15 to ø 51 mm
EAN
4016842115037
Material
steel
Threaded connector
3/8"
Type
black 3/8"
Weight
0.26 kg
Special features
includes threaded bolt and universal spanner; maximum 4 threaded bolts for 4 different directions can be applied
