Since 1949, König & Meyer has been a trusted name in the world of music, renowned for thoughtfully designed accessories and outstanding quality.
From design up to completion, K&M offers everything under one roof.
Matured production processes and qualified employees ensure that every product is punctually supplied in top quality. Thanks to state-of-the-art technology and our commitment to high vertical integration, K&M possesses a degree of flexibility that facilitates a quick response to our customers needs.
In addition to quality (DIN EN ISO 9001) and customer service, environmental protection is one of the company’s primary goals. Our certification according to ISO 14001 and EEC environmental audit regulations (EMAS II) and our certification according to the “Sicher mit System” seal of approval underscores our efforts in environmental protection and our outstanding health and safety practices.
We will continuously evaluate and improve our processes and technologies in the future as well.
All this with one goal in mind: High-quality products for contented customers!
When precision becomes philosophy.

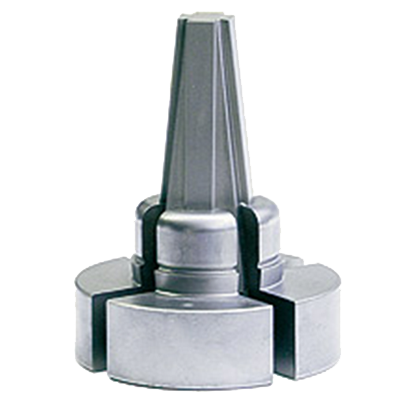

Since the founding of König & Meyer, tool making has been the main focus in our production process. Here creativity teams up with precision. Regular and special tools, follow-on dies and the building of special purpose machines are part of day-to-day business, not least because of our high degree of vertical integration.

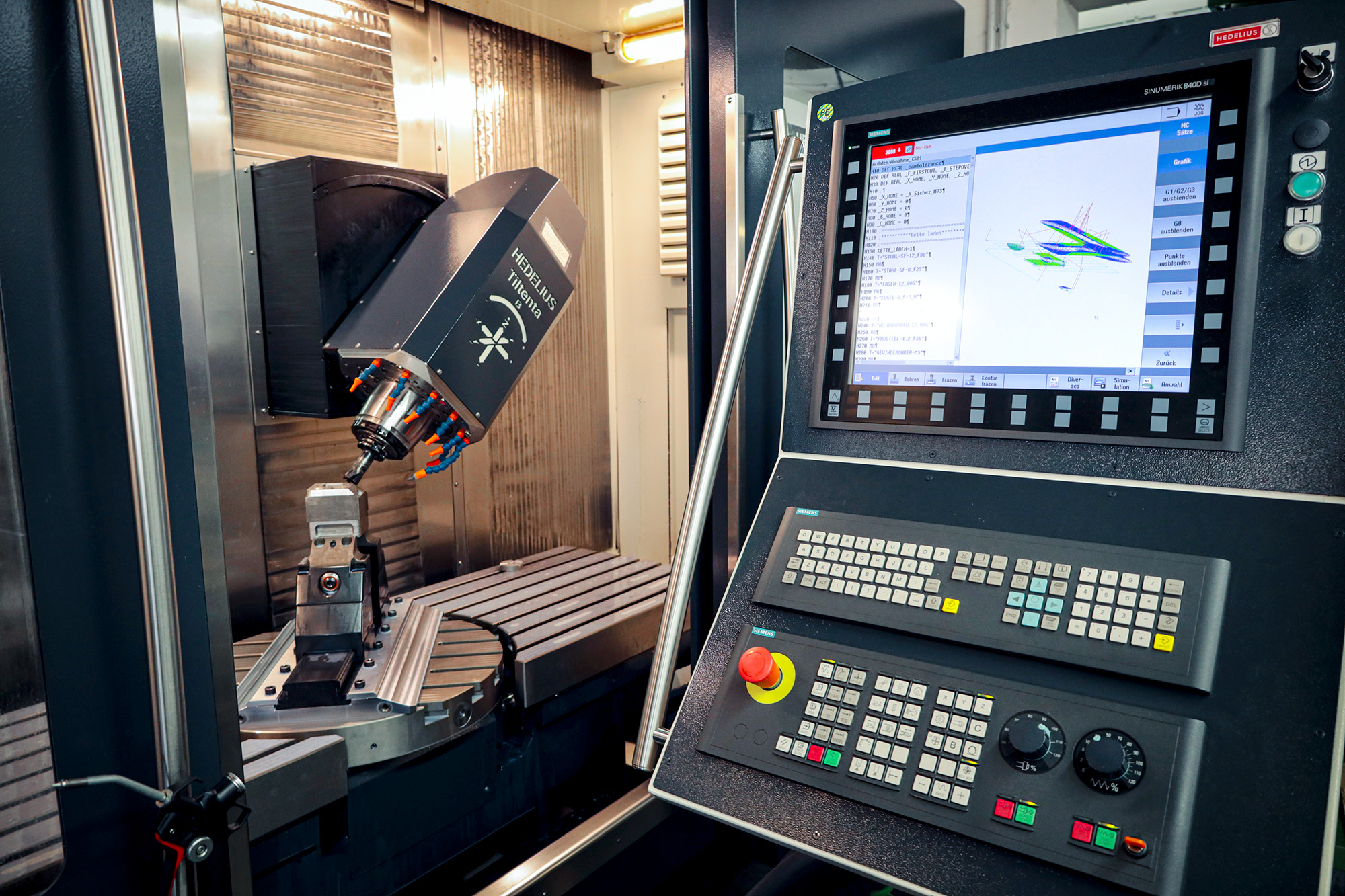

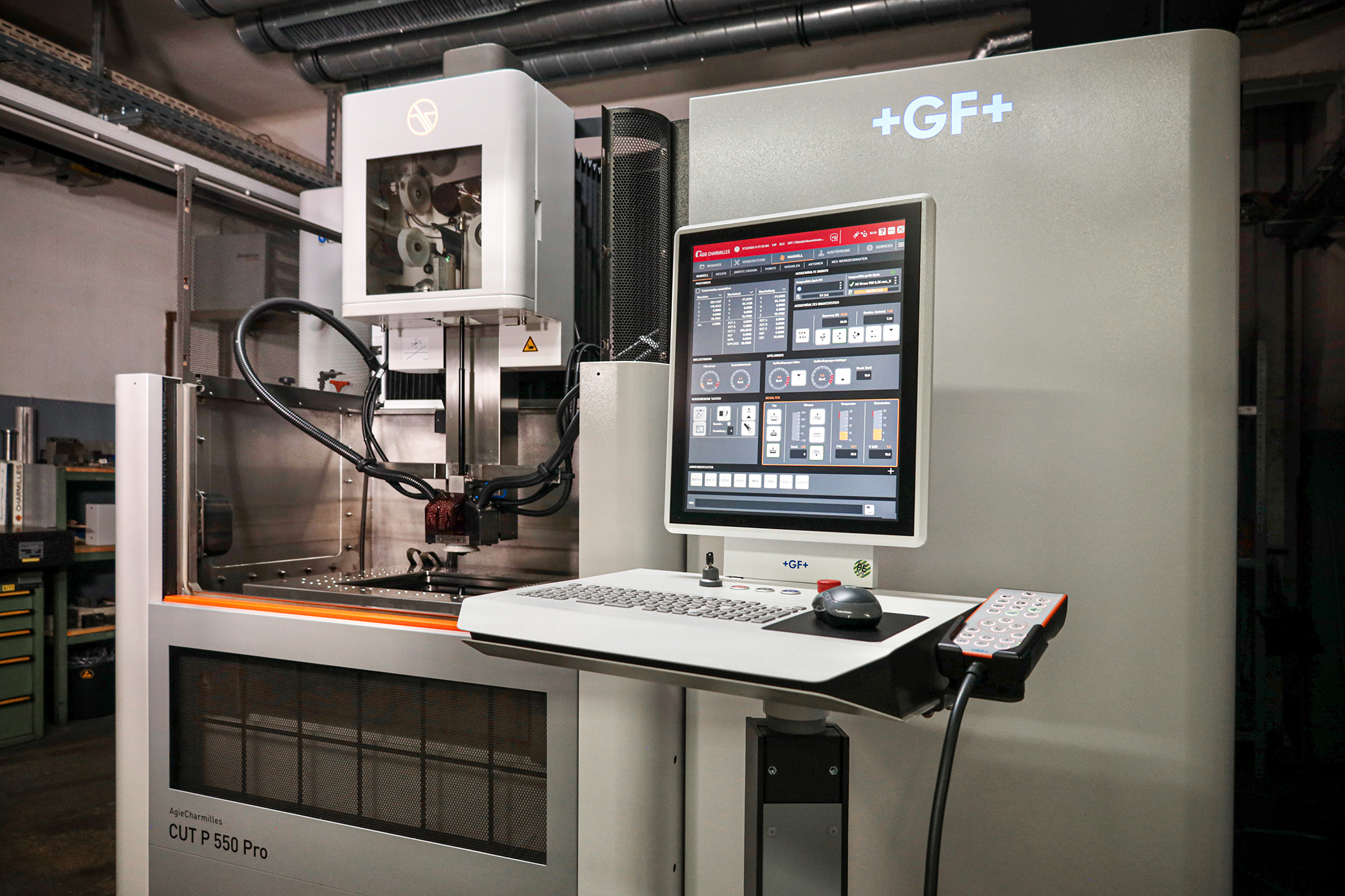

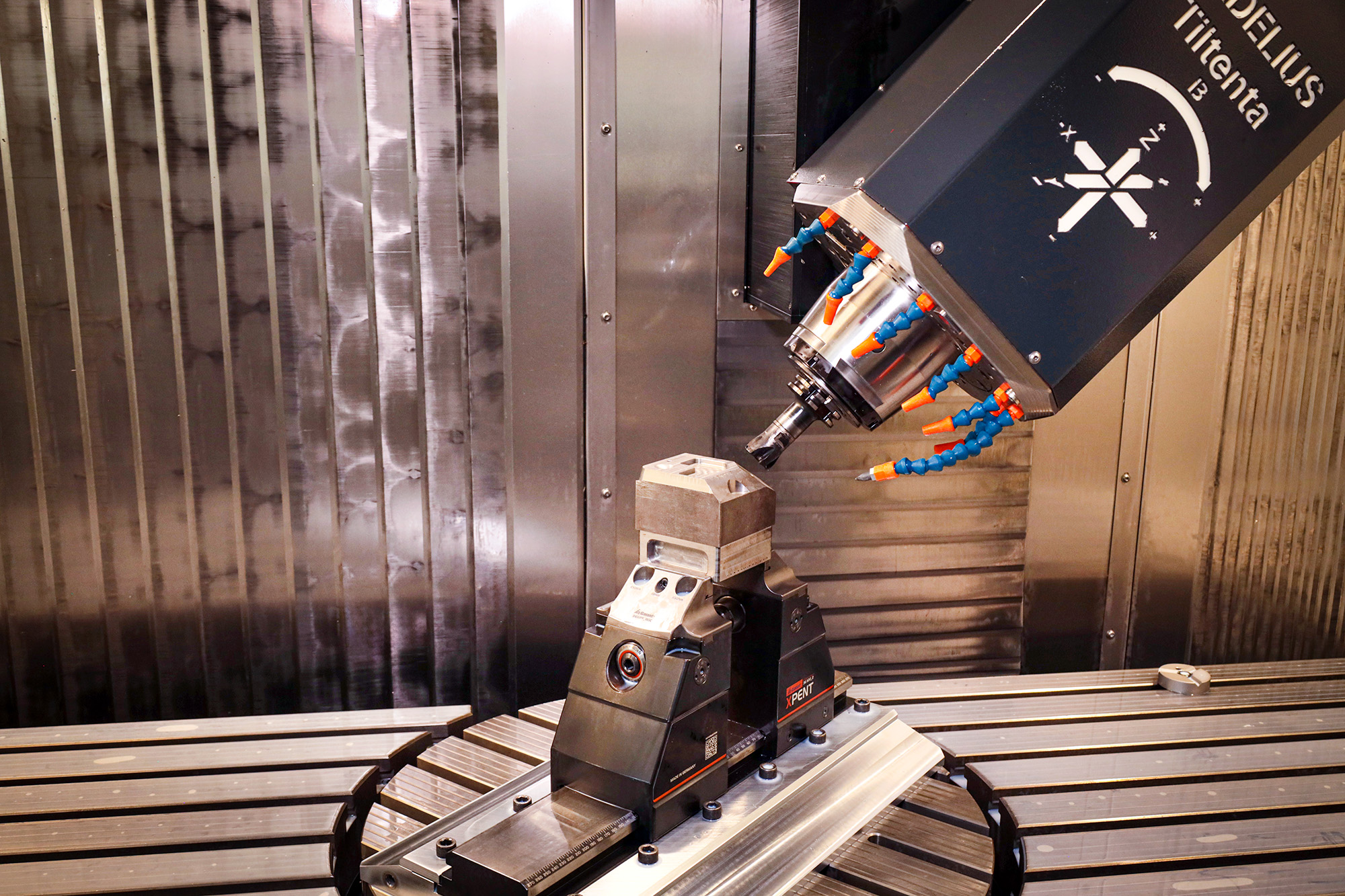

From design and construction using our CAD systems (Siemens NX and Creo Elements/Direct Drafting) through to implementation, our experienced specialists develop solutions to meet your specific requirements with expertise and the utmost care. It is this expertise, combined with the latest technologies – including CNC-controlled milling and turning machines as well as wire and sinker EDM machines – that defines the quality of our toolmaking and mechanical engineering.
| Kompetenz | Werkstoffgröße |
| Harding: | 300 x 170 x 100 mm |
| CNC milling: | 2300 x 600 x 650 mm |
| CNC turning | ø 280 mm, L 450 mm |
| Grinding: | 1000 x 600 x 425 mm |

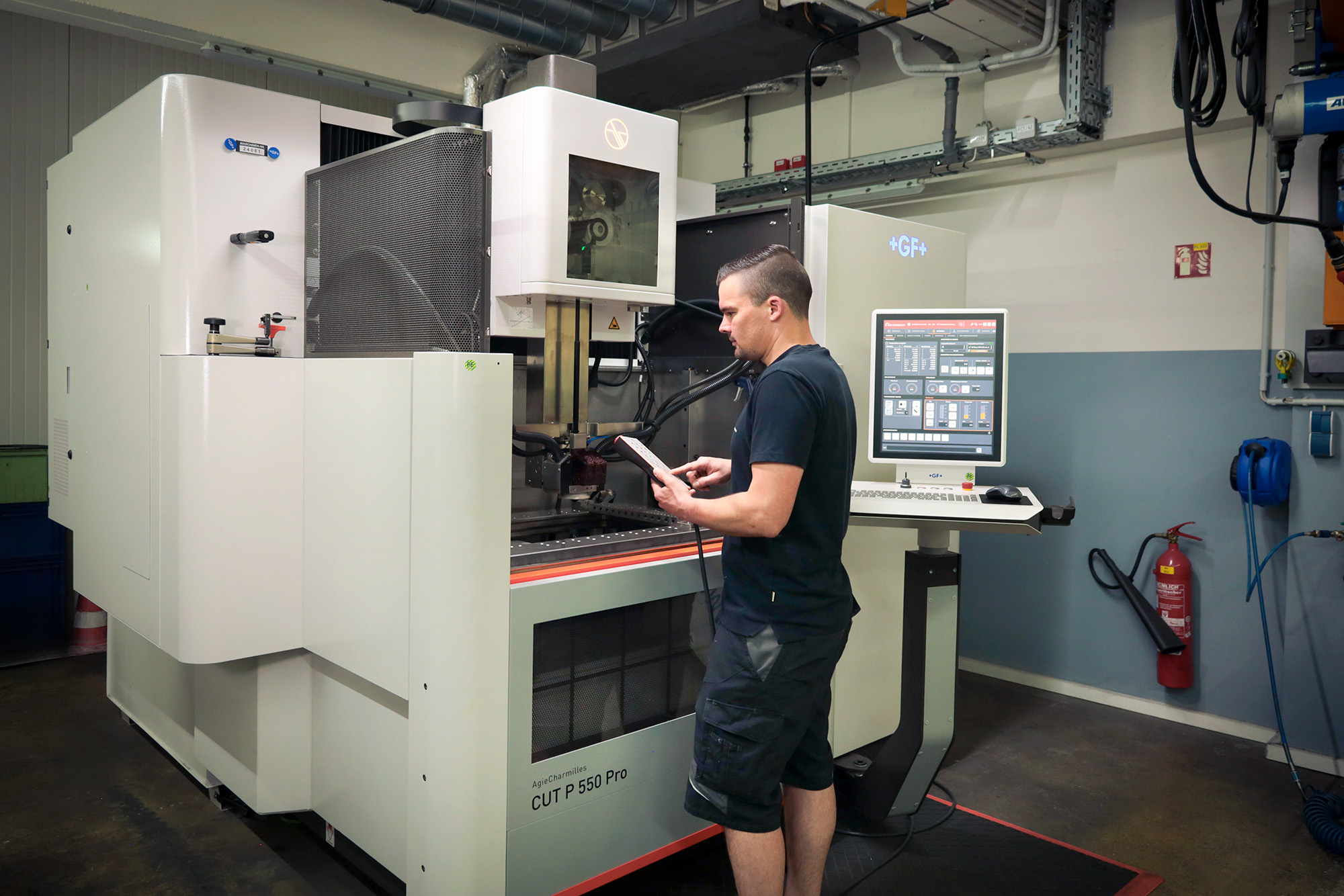

| Wire-cutting: | 550 x 350 x 300 mm |
| Electro-Erosion: | 620 x 420 x 400 mm |
| Start hole Ersosion: | ø 0,5 mm – 3,0 mm (max. h: 200 mm) |
The fusion of flexibility and precision.

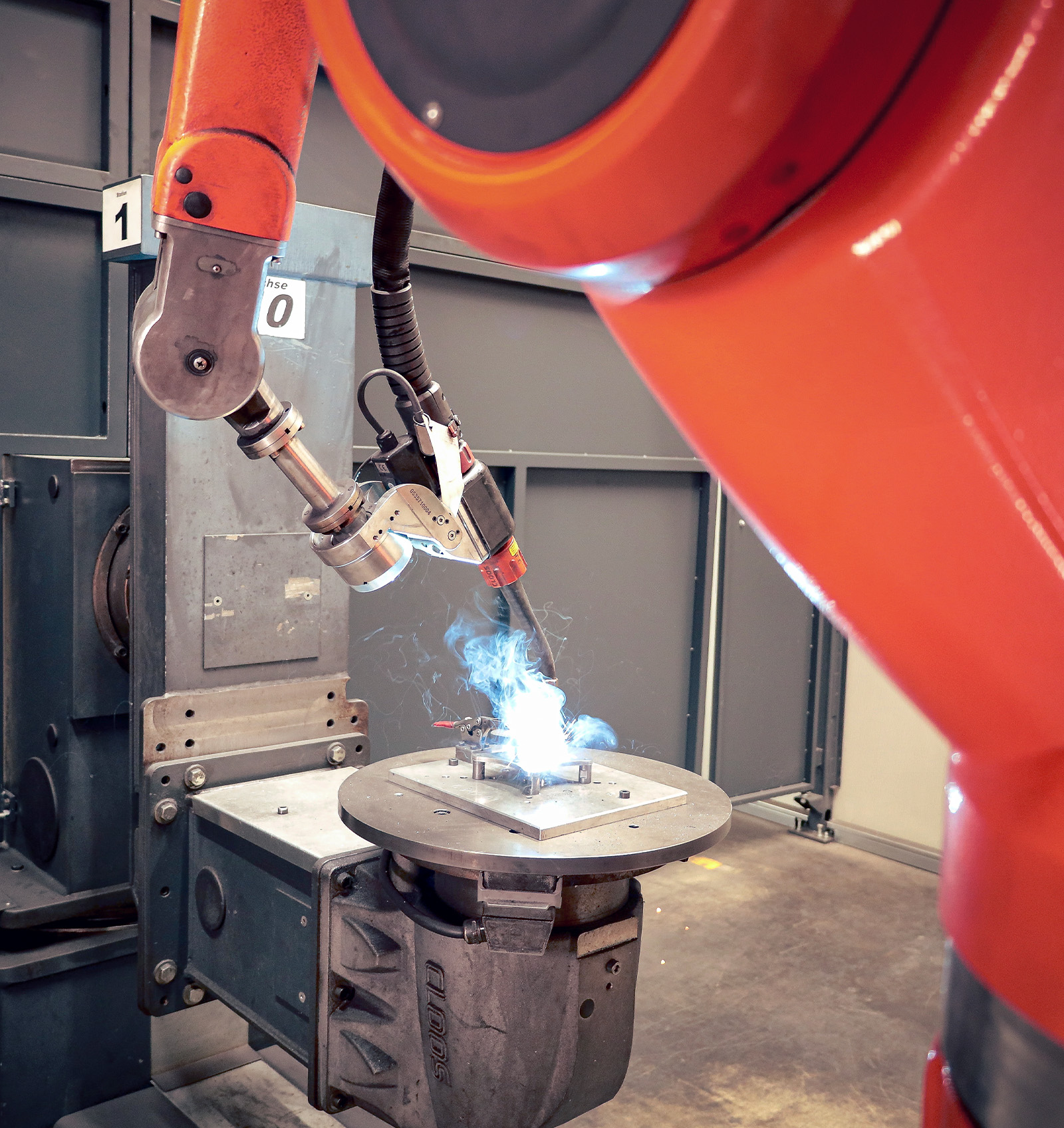

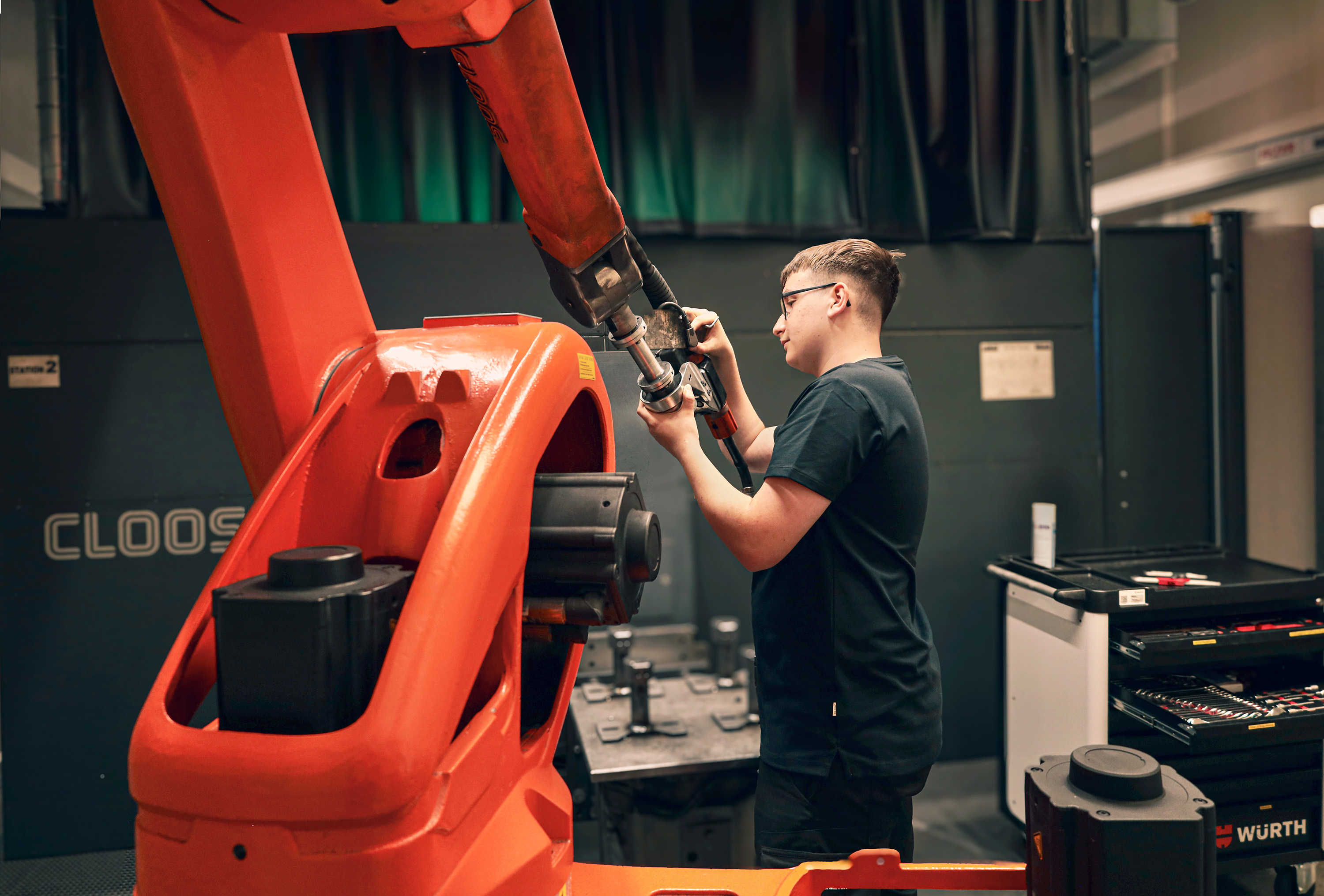

Two fully programmable welding robots offer their unbeatable precision to you around the clock. With their Push & Pull burners (Fronius gas-shielded welding equipment), they create solid joints of invariably uniform quality when welding steel and aluminum.
This applies to the manufacturing of either large or small quantities. In addition, we can manufacture small manually welded lot sizes perfectly and reliably. By means of spot welding or stud welding processes, or MIG/MAG or WIG welding machines, we connect steel components quickly and flexibly per precise specifications.
| Welding robots | 2 robots (MIG/MAG), each with turntable |
| (max. load capacity 300 kg) for steel and aluminum | |
| Manual welding equipment | spot welding equipment |
| stud welding equipment | |
| MIG/MAG welding machines | |
| WIG welding machines |

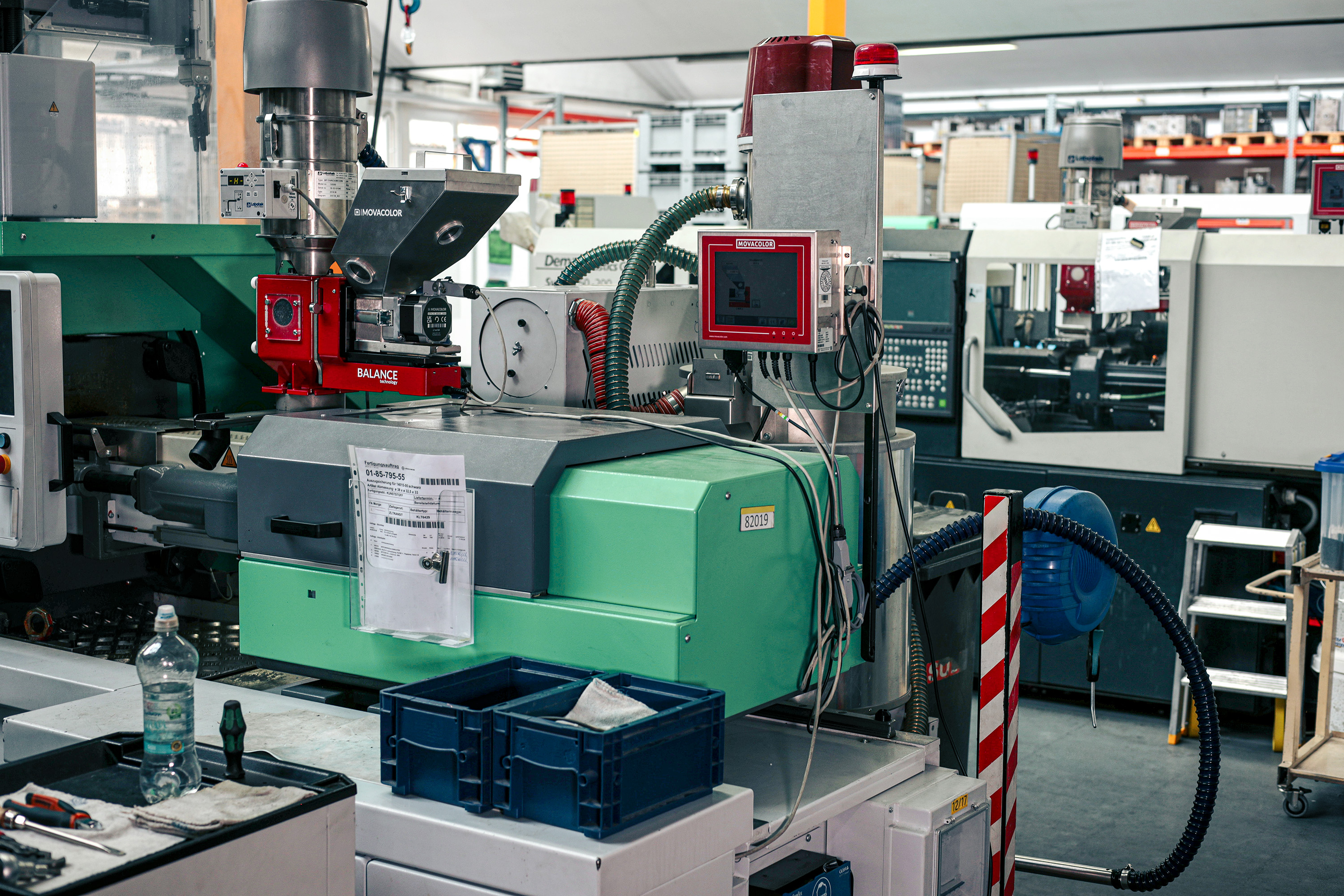

The art of processing plastics.

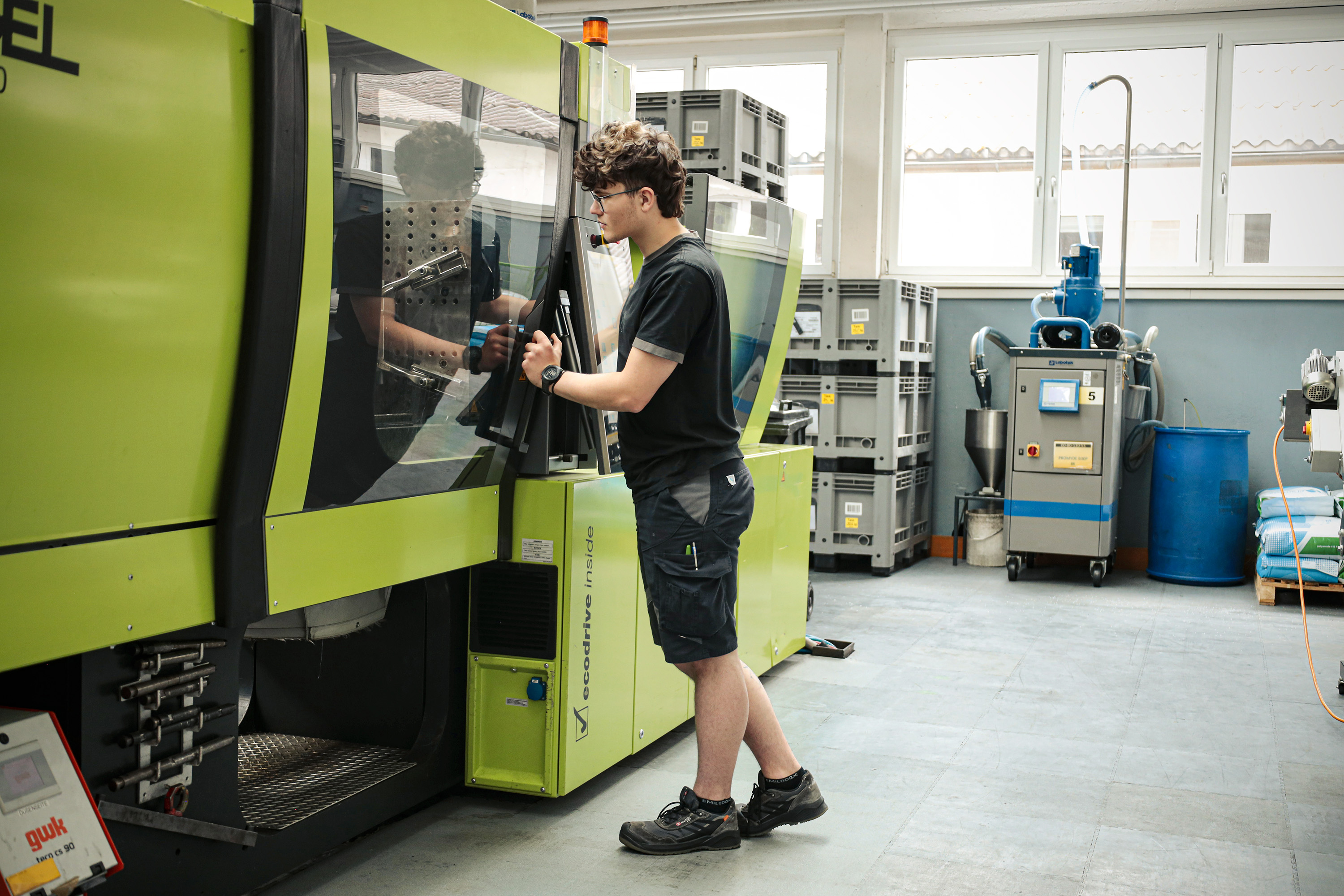

Highly efficient modern injection molding machines in different catego- ries enable us to process nearly every kind of thermoplastic (except PVC and silicone) quickly and economically in an environmentally friendly fashion.
The necessary tools for production can be provided in our in-house tool shop or, due to the compatibility of our machines, be easily taken over from the customer.
Qualified mechanics work efficiently and flexibly for you. That’s why we can realize production orders at extremely short notice if needed. Decades of experience in the manufacturing of various plastic parts make us a truly competent partner.
K&M injection molding machines:
| Closing Power | Tool width | Injection width |
| 500 kn | 370 x 370 mm | 94 g |
| 600 kn | 370 x 370 mm | 105 g |
| 1000 kn | 420 x 420 mm | 205 g |
| 1000 kn | 460 x 460 mm | 200 g |
| 1200 kn | – | 200 g |
| 1600 kn | 520 x 520 mm | 402 g |
| 2100 kn | 580 x 580 mm | 402 g |
| 2200 kn | 596 x 596 mm | 359 g |
| 2 components | ||
| 90 kn | – | 72 g / 26 g |

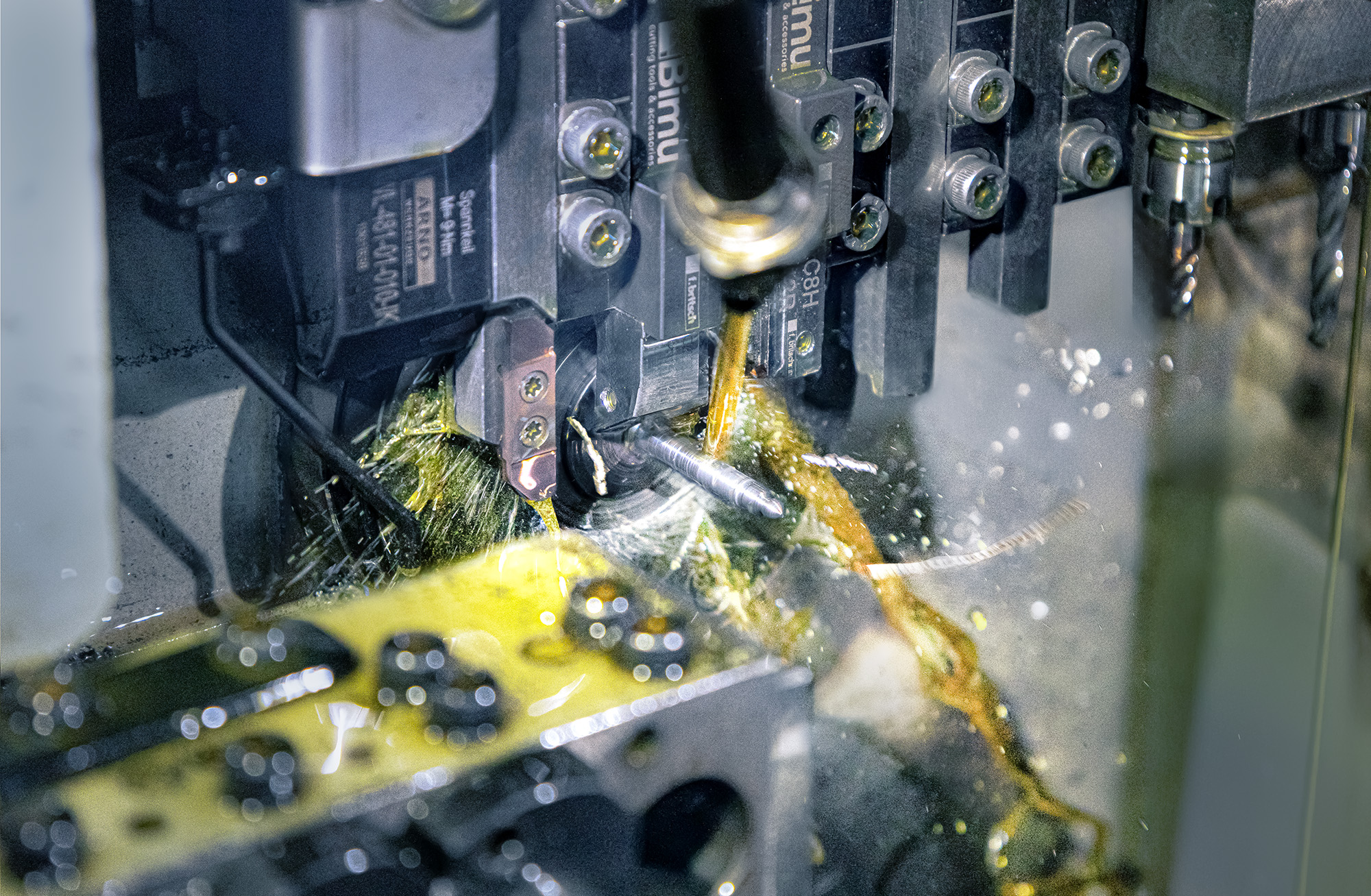

Turning: everything revolves around quality

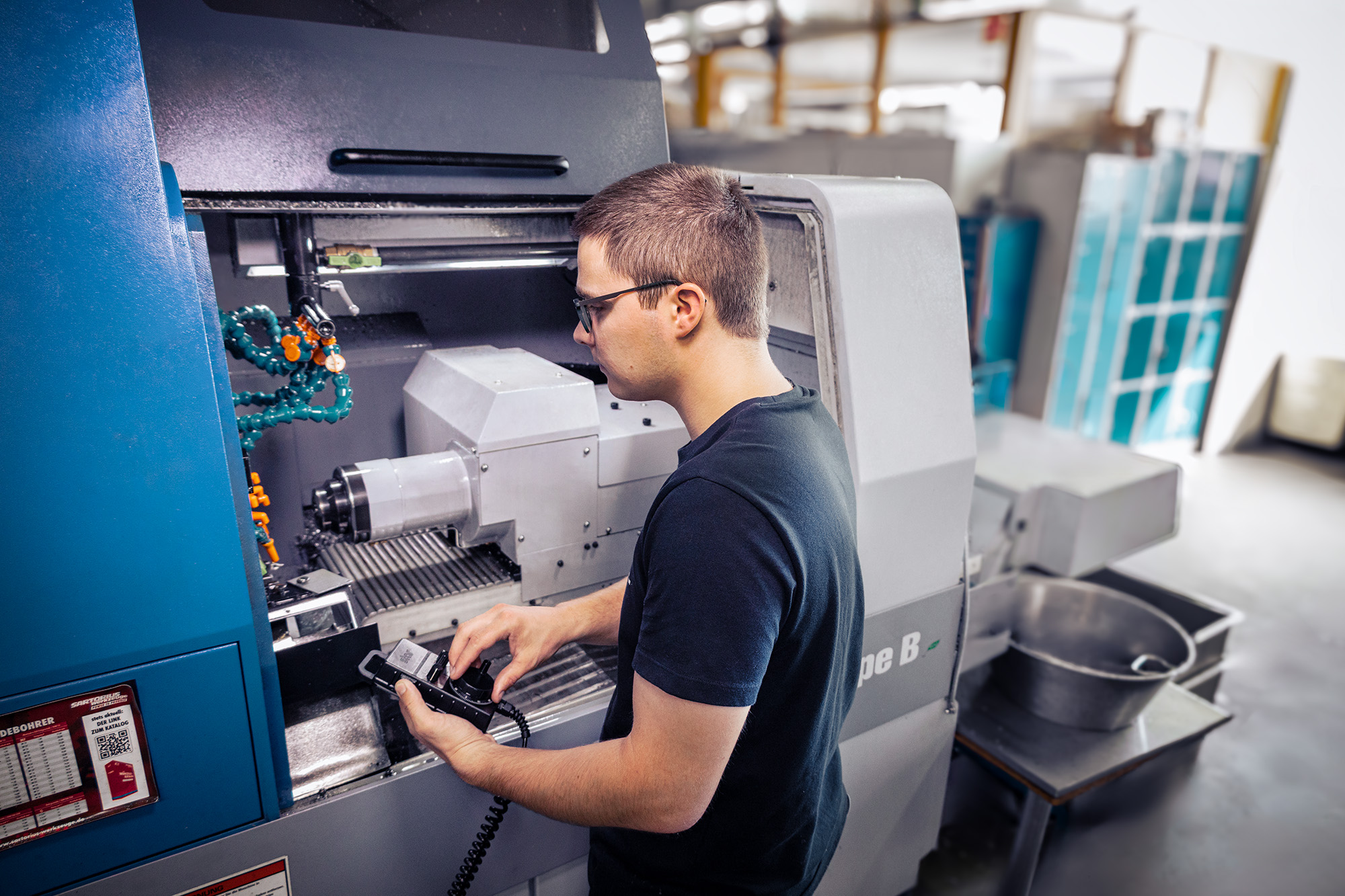

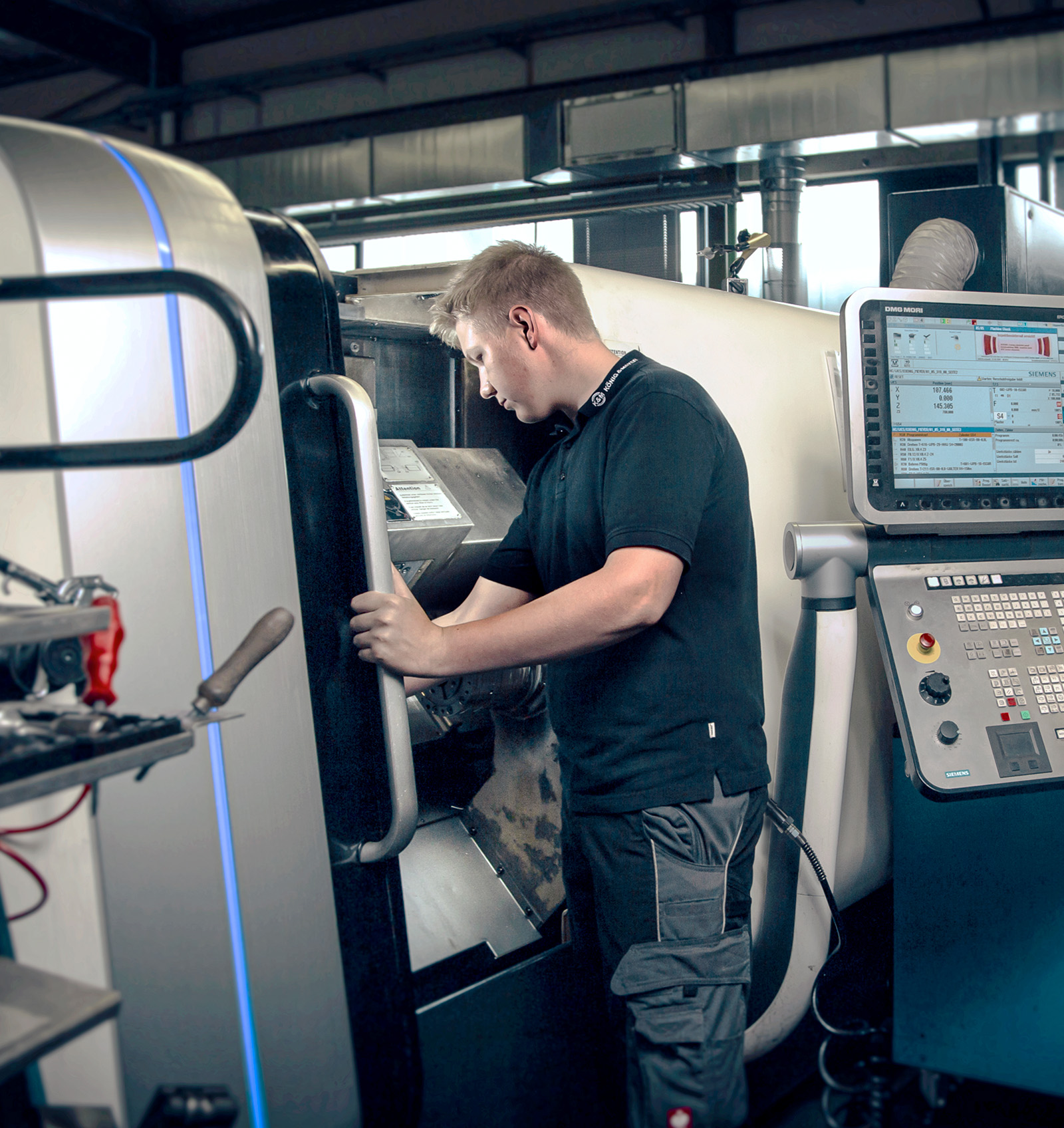

When it comes to their machines, they’re nobody’s fools: Well-trained precision mechanics utilize the full efficiency of our CNC- operated lathes in order to produce as rationally and cost-effectively as possible. Loadable tool turrets with propelled tools able to process com- ponents on both sides without clamping as well as load magazines that facilitate an automated production process make this possible.
Round, square or hexagonal material can be processed in aluminum, brass or steel. Strict adherence to tolerances is self-evident.
| 2 CNC- operated lathes | 12-position turret |
| with 6 or 12 propelled | |
| tools max. component size L: 130 mm, Diameter: 60 mm | |
| 8 CNC- operated lathes | 15-position turret |
| max. component size L: 400 mm, Diameter: 5-40 mm | |
High-quality cutting and forming.

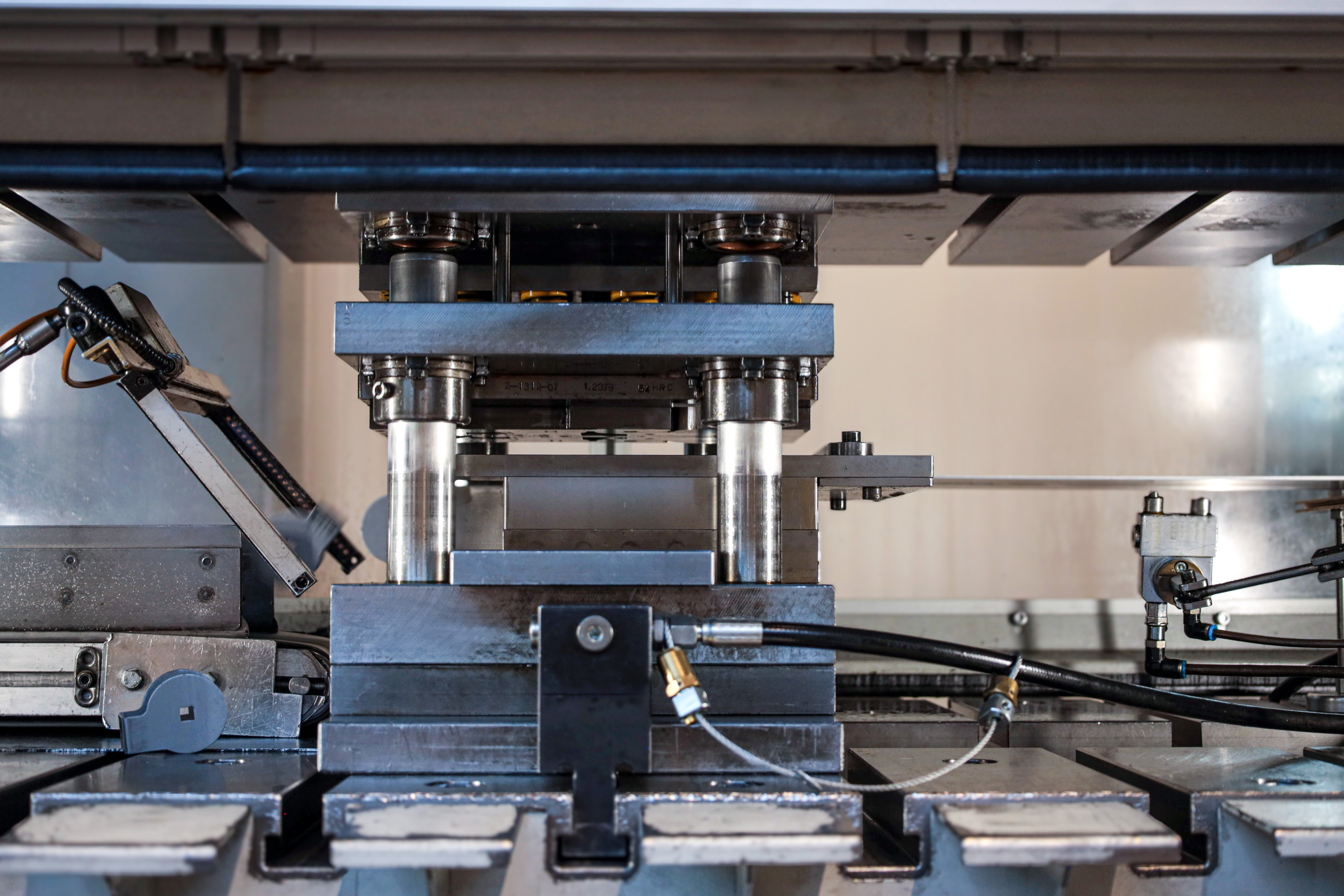

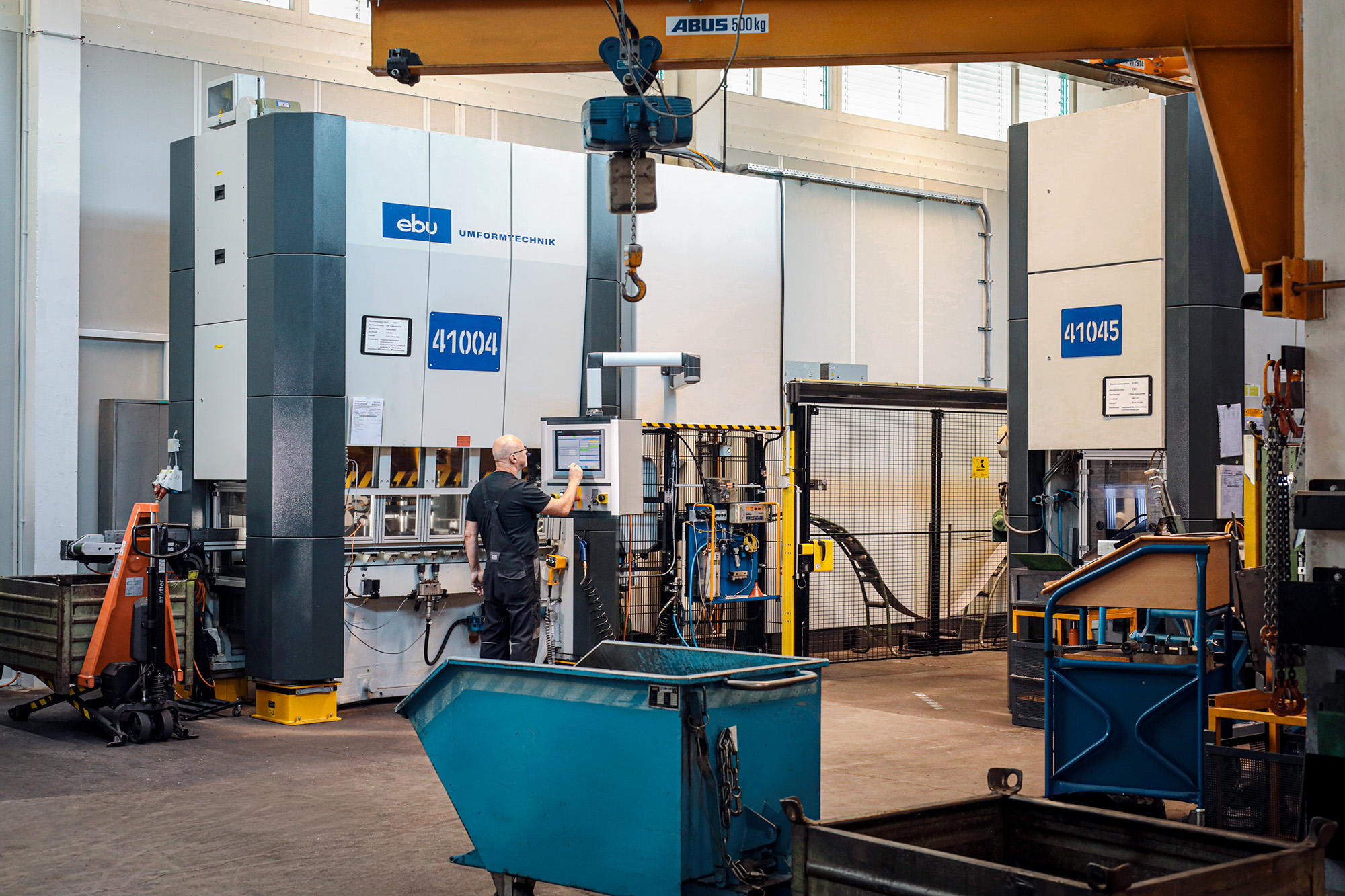

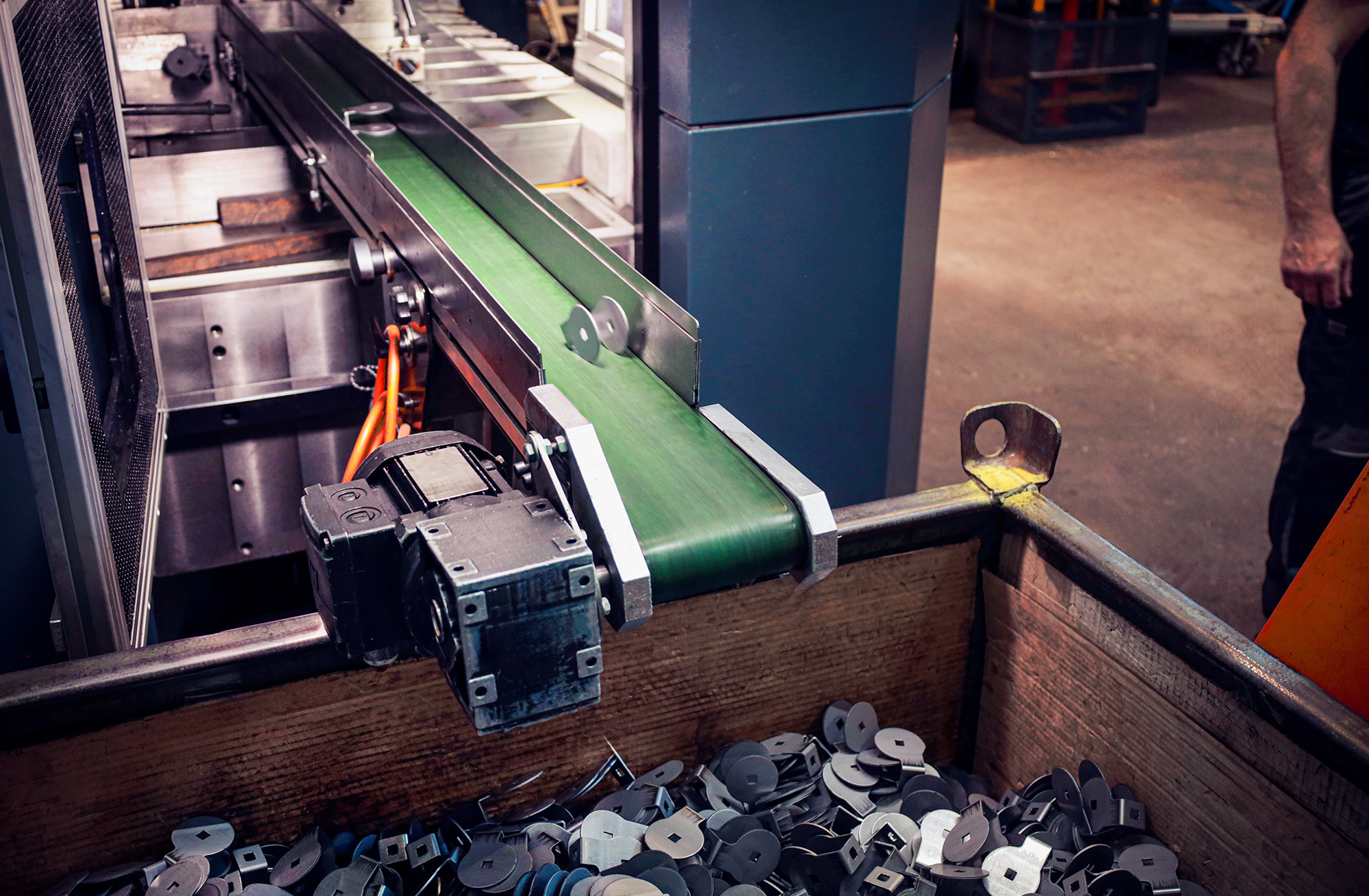

With CNC-operated eccentric presses we process strip steel (also stainless steel, galvanized steel and aluminum) from the coil to high-quality semi-finished products. Follow-on dies provide for the separation cut, forming, stamping and even thread rolling in one operation. Tracersup to 63 t pressing power, probes and sensors ensure a safe operational sequence and maximum precision. Our in-house tool shop will gladly provide you with the necessary tools. Our CNC-operated hydraulic presses have a pressing power of up to 63 tons.
We also offer every type of separation cut and forming work in the same high quality.
| Hydraulic presses: | up to 63 t pressing power |
| Hydraulic drawing cushion for precise counterpressure during bending | |
| Press-fitting of turned parts into tubes up to 2,000 mm in length | |
| Eccentric presses: | Pressing forces of 63, 100 and 160 tons for every application |
| Tool dimensions of up to 1,600 x 800 x 400 mm (L x W x H) and a weight of up to 1,500 kg | |
| Strip steel from the coil (max. coil width up to 540 mm and thickness up to 5 mm) | |
| Custom tools ranging from progressive cutting dies to progressive compound dies |
Environmentally-friendly powder coating Technology.

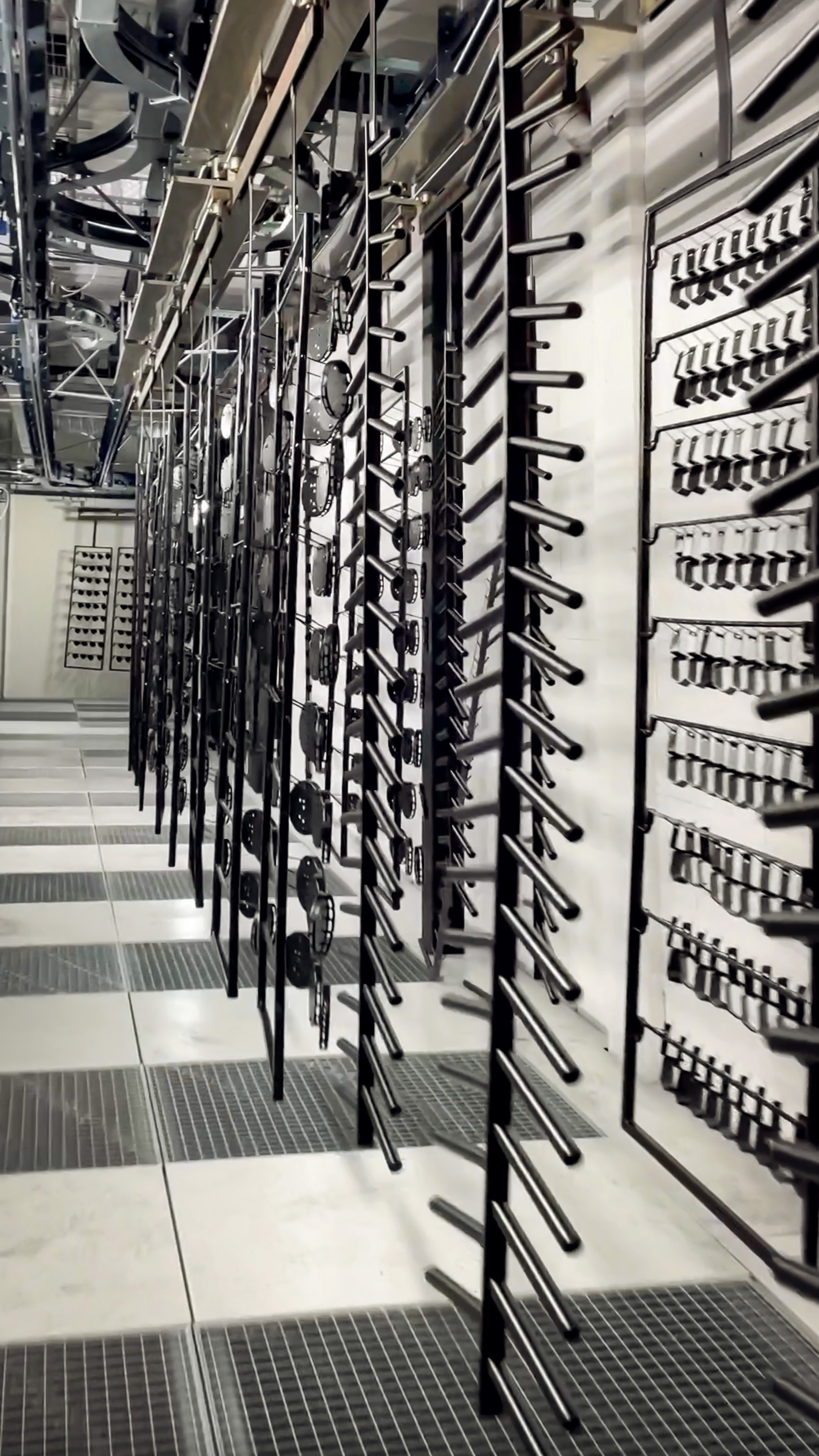

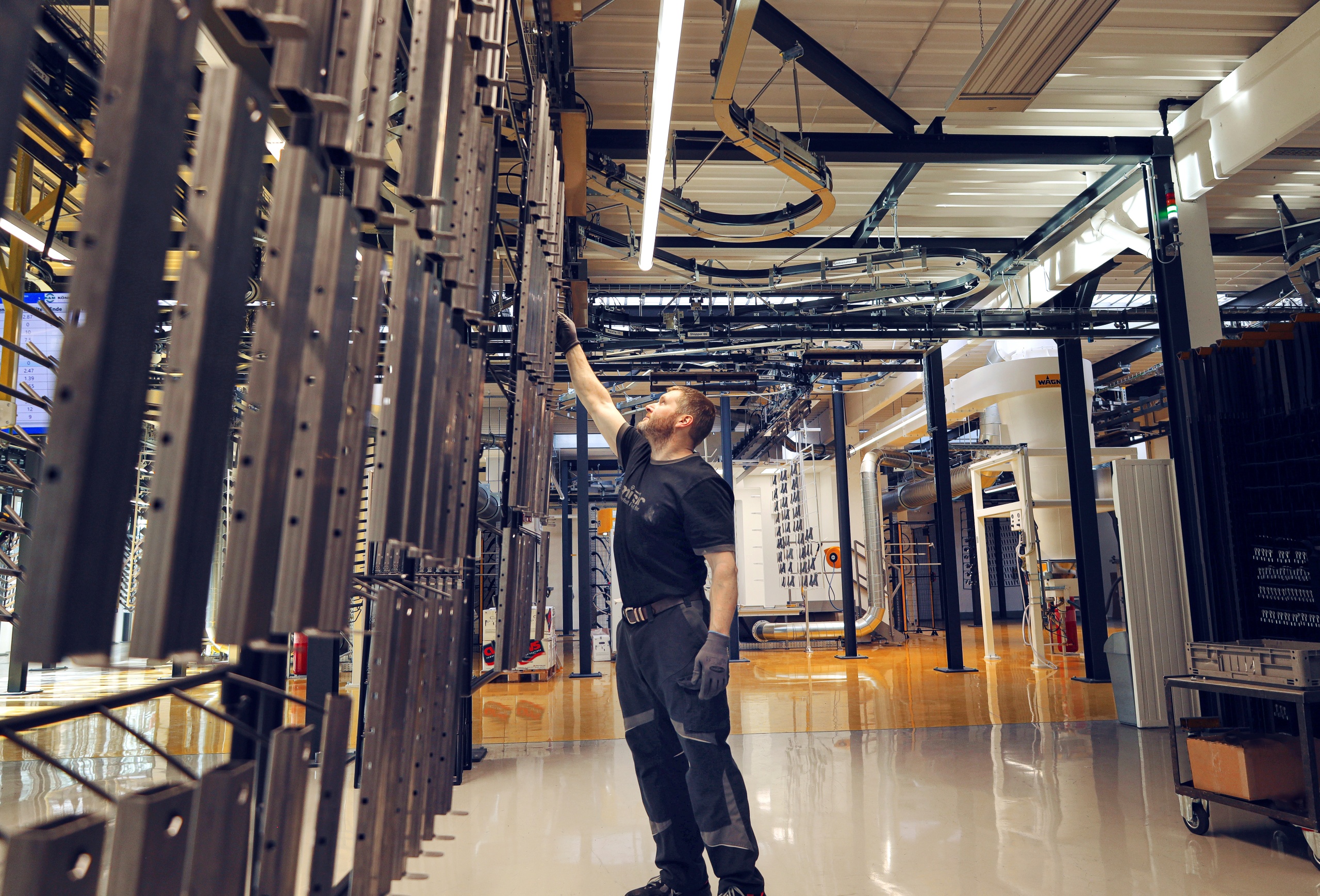

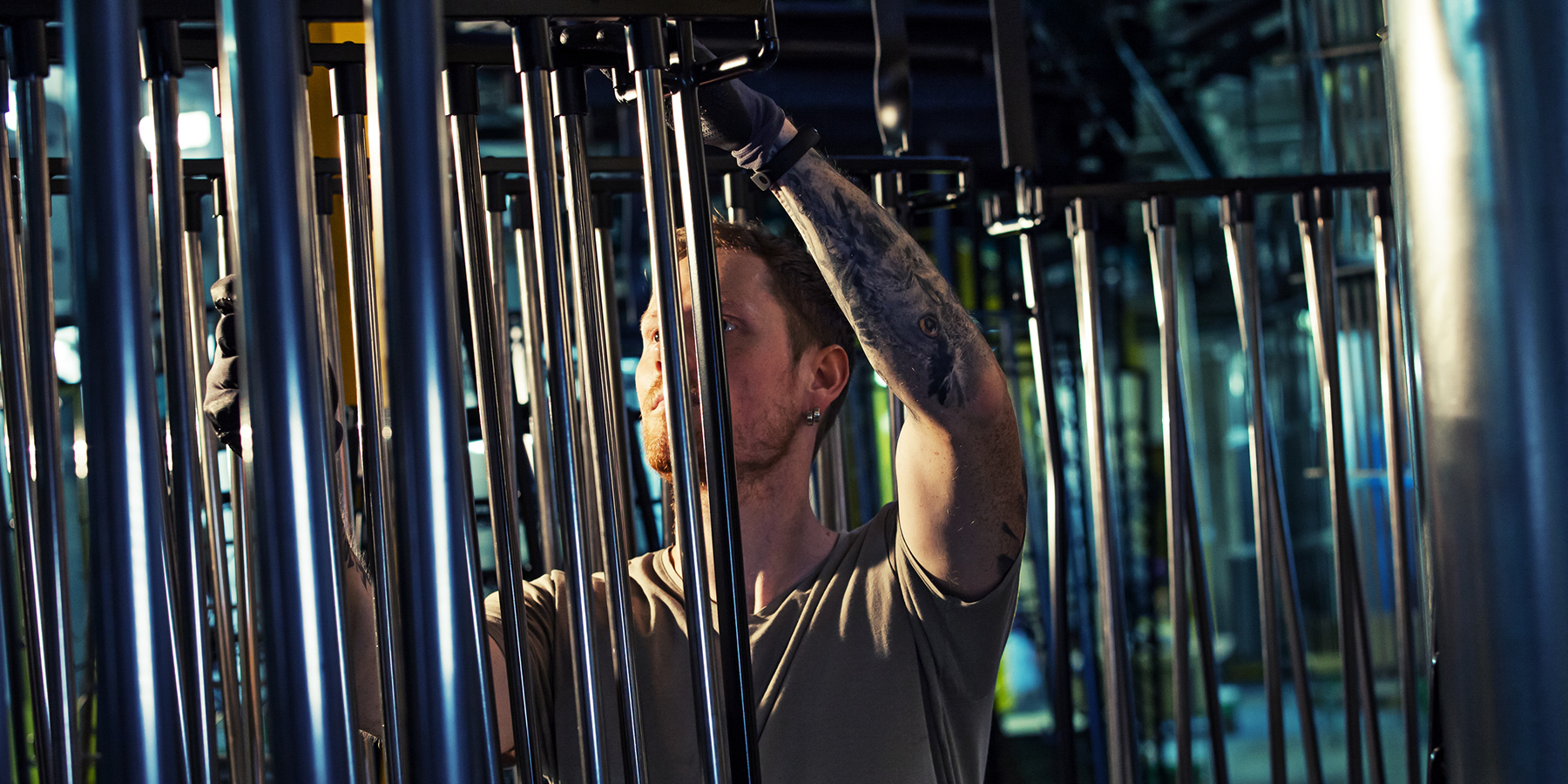

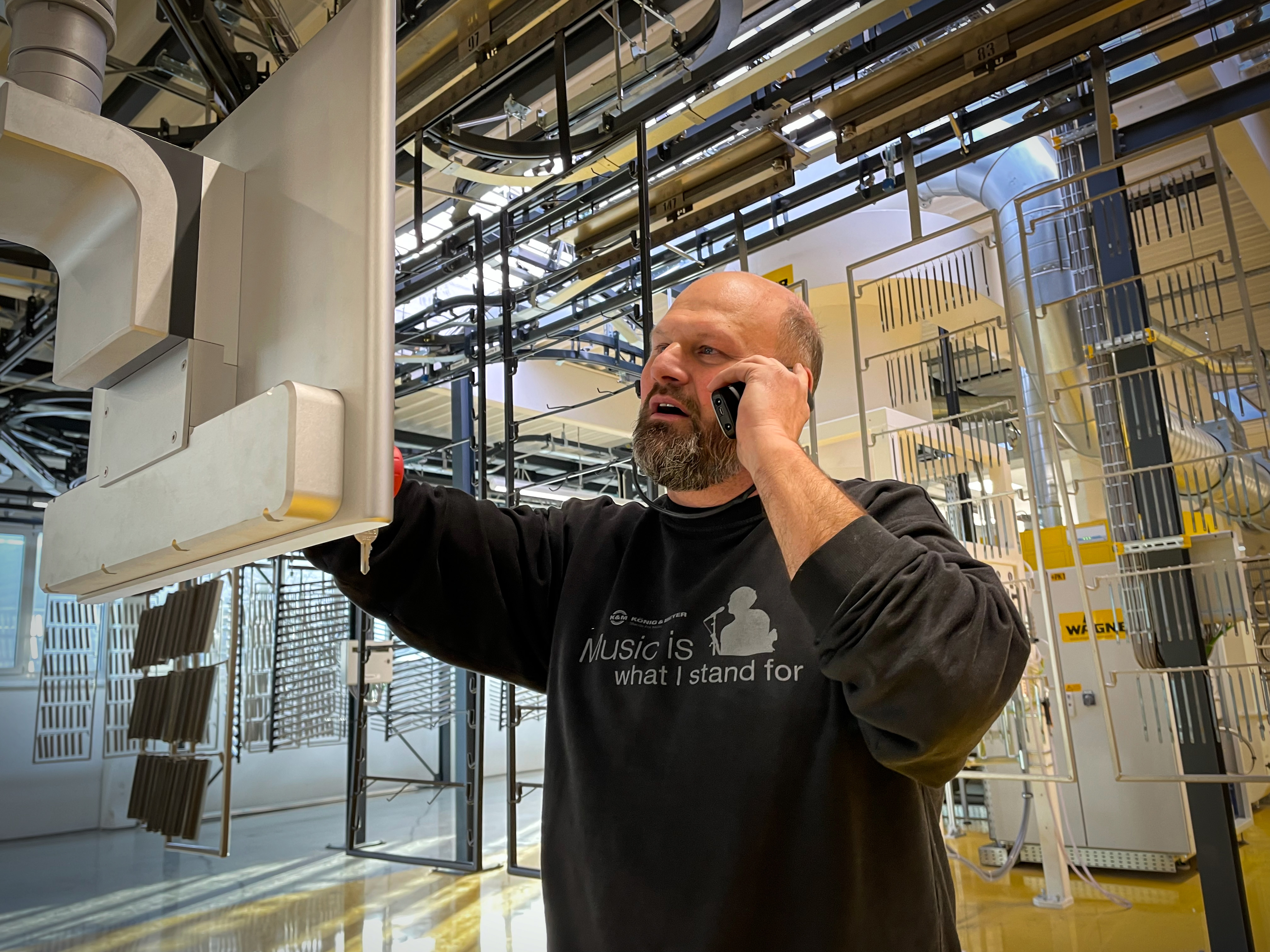

It’s in our surface finishing that our know-how really shows. Our powder coating plant, newly built in 2024, sets standards in terms of quality, flexibility and efficient manufacturing. Here, metal parts are electrostatically coated with high-quality powder using 12 spray guns per booth. Two cyclone separators ensure high recovery rates for environmentally friendly production and maximum efficiency. In particular, parts to be powder-coated in black can be flexibly and cost-effectively integrated into ongoing production. Versatile rack carts can accommodate almost all workpiece shapes (up to 1200 x 1800 x 400 mm), often eliminating the need for new fixtures. Several buffer stations and two loading stations ensure fast and flexible production.
| Pretreatment: | Degreasing/bonderizing, rinsing, drying |
| Assembly: | 2 assembly stations Coating cabinets |
| Cabinet 1: | Standard Black |
| Cabinet 2: | for all colours |
| Max. component size: | 1200 x 1800 x 400 mm |

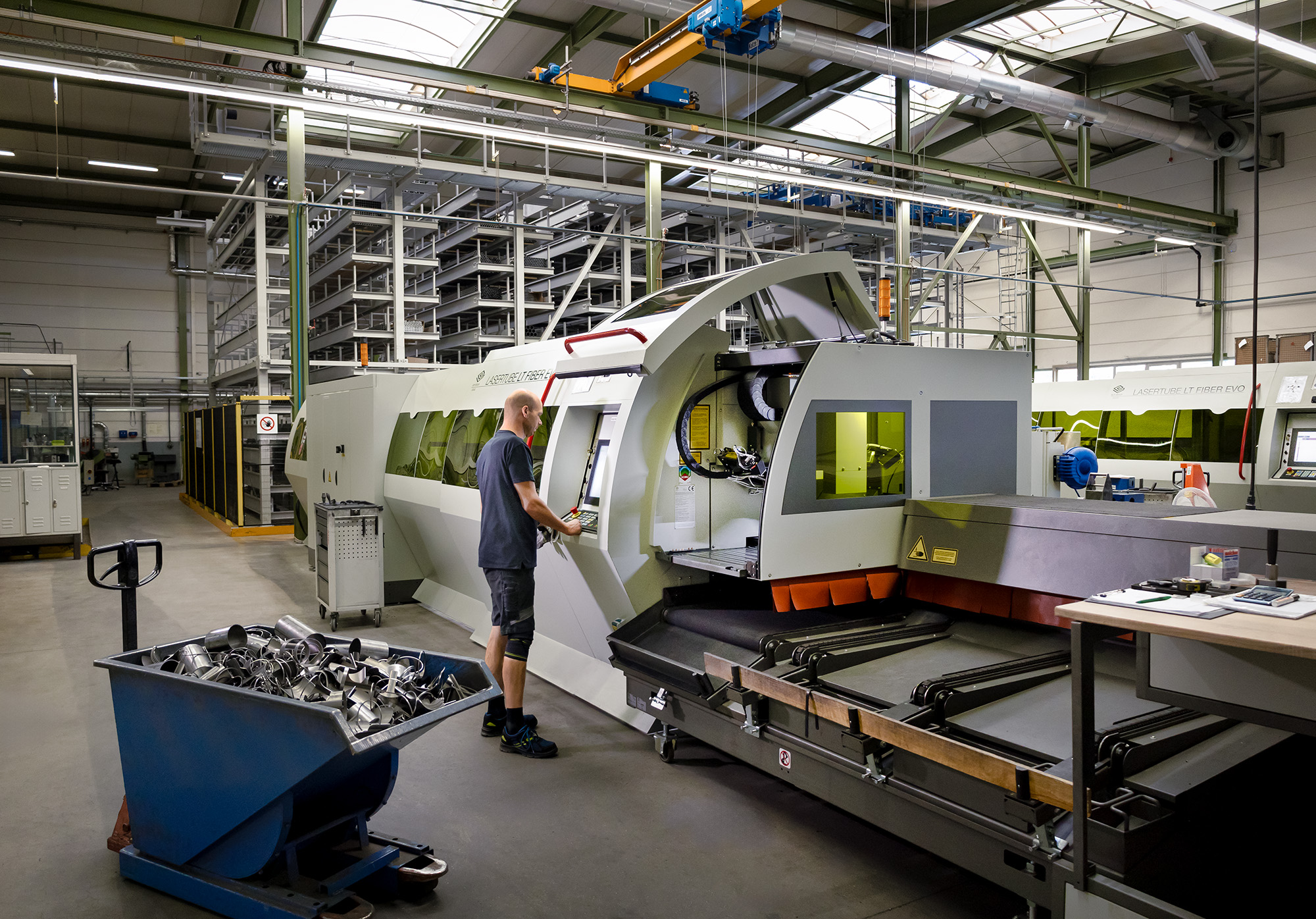

We see tubes in a completely different light.

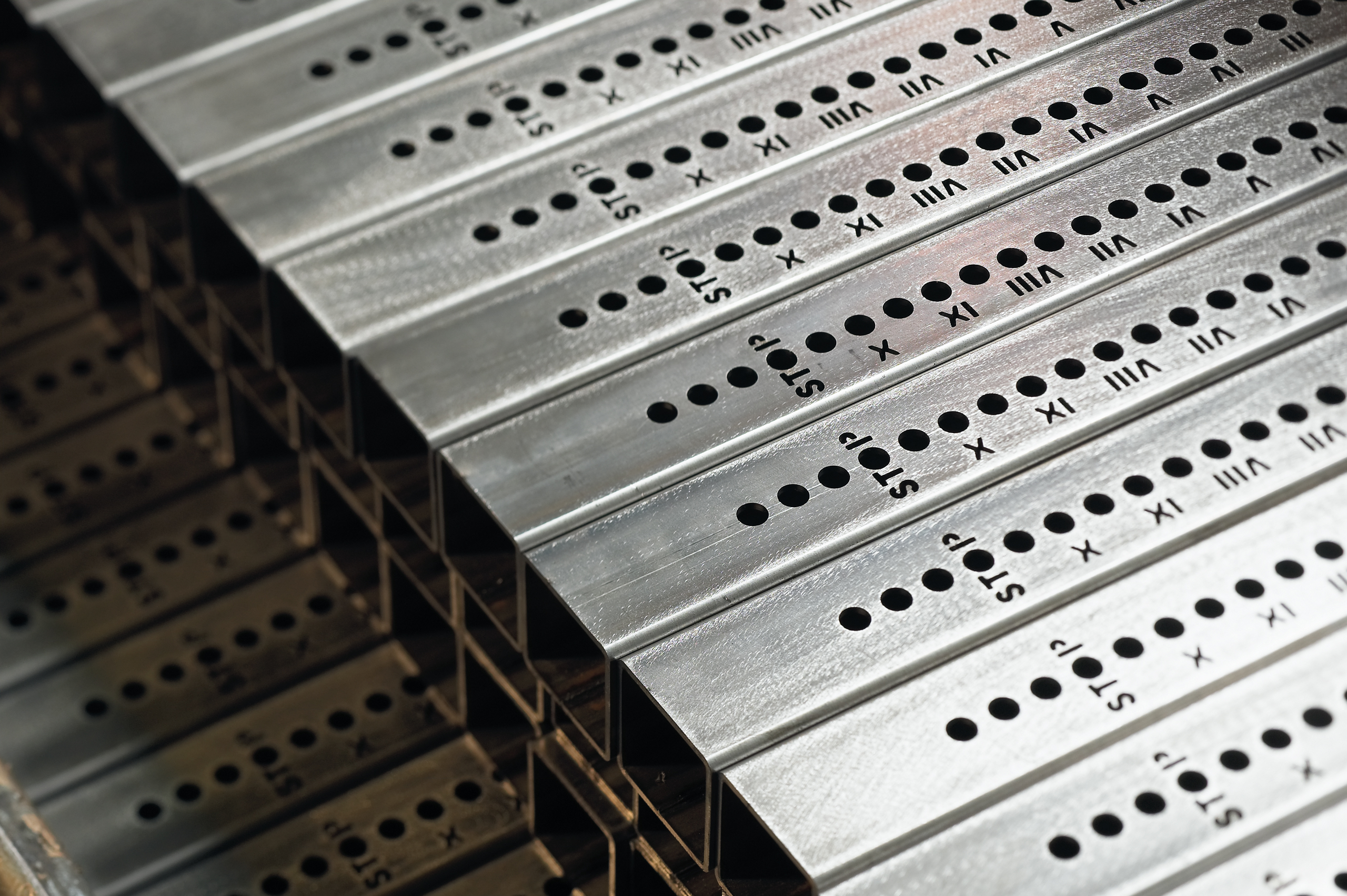

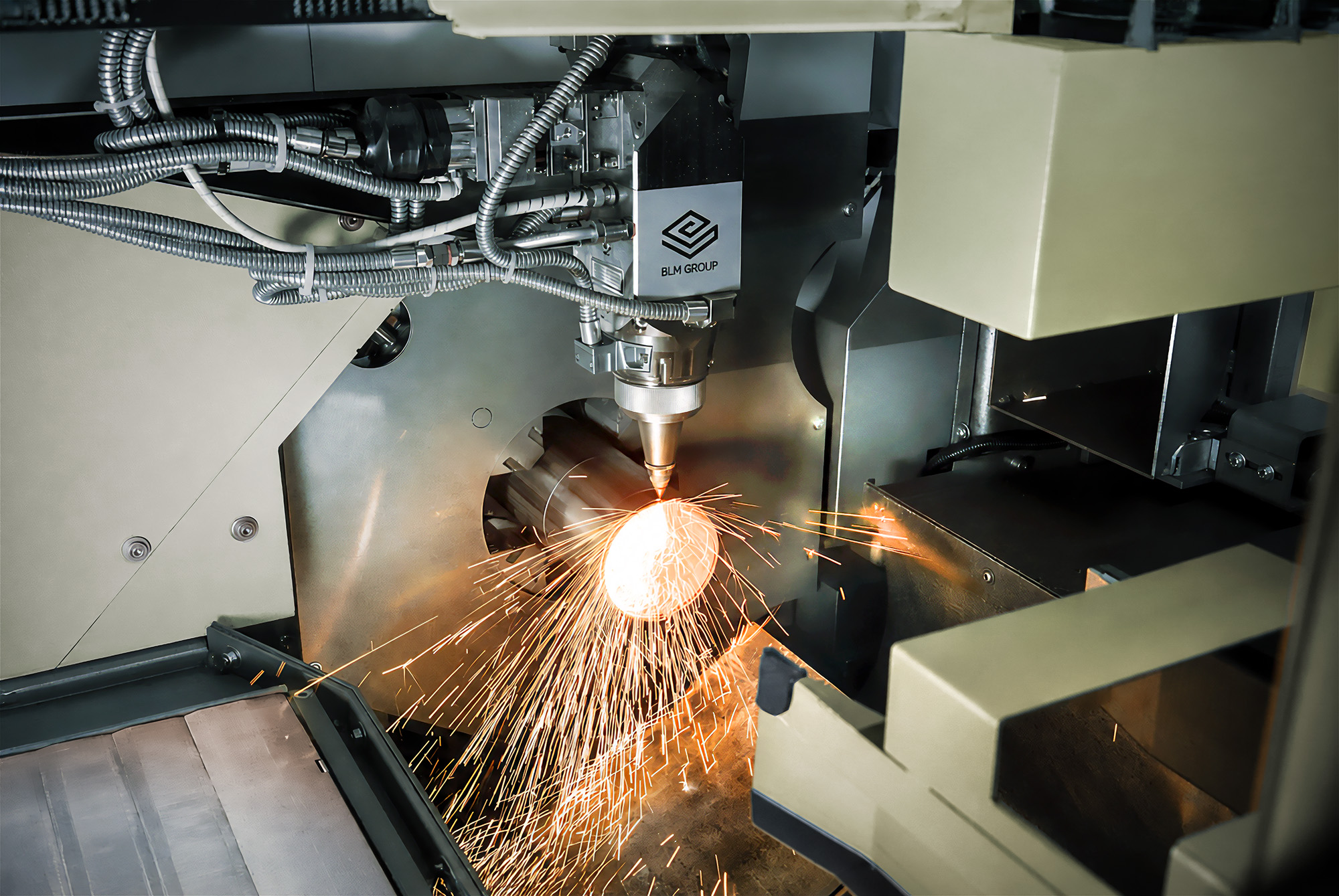

Round, square or oval – we finish steel or stainless steel tubes in seconds with the latest laser technology. Fully independent of any tools, contours can be cut that offer completely new possibilities for further processing. With the tube laser, a whole world of new products opens up. Thanks to CNC control, requests for alterations can be flowed immediately into the ongoing manufacturing process.
From small series to mass production, we are therefore able to manufacture substantially more economically and flexibly than possible with any conventional punching and separation tool.
| Material to be processed: | Steel, stainless steel, and aluminum |
| Cross-sections to be processed: | Round tubes Ø 12 to 140 mm |
| Square, rectangular and oval tubes from 12 x 12 to 120 x 120 mm | |
| Tube wall thicknesses of up to 7 mm (steel) and up to 3 mm (aluminium and stainless steel | |
| Bar lengths of up to 6,500 mm and workpiece lengths of up to 3,500 mm are possible |
Efficient, economic and proper

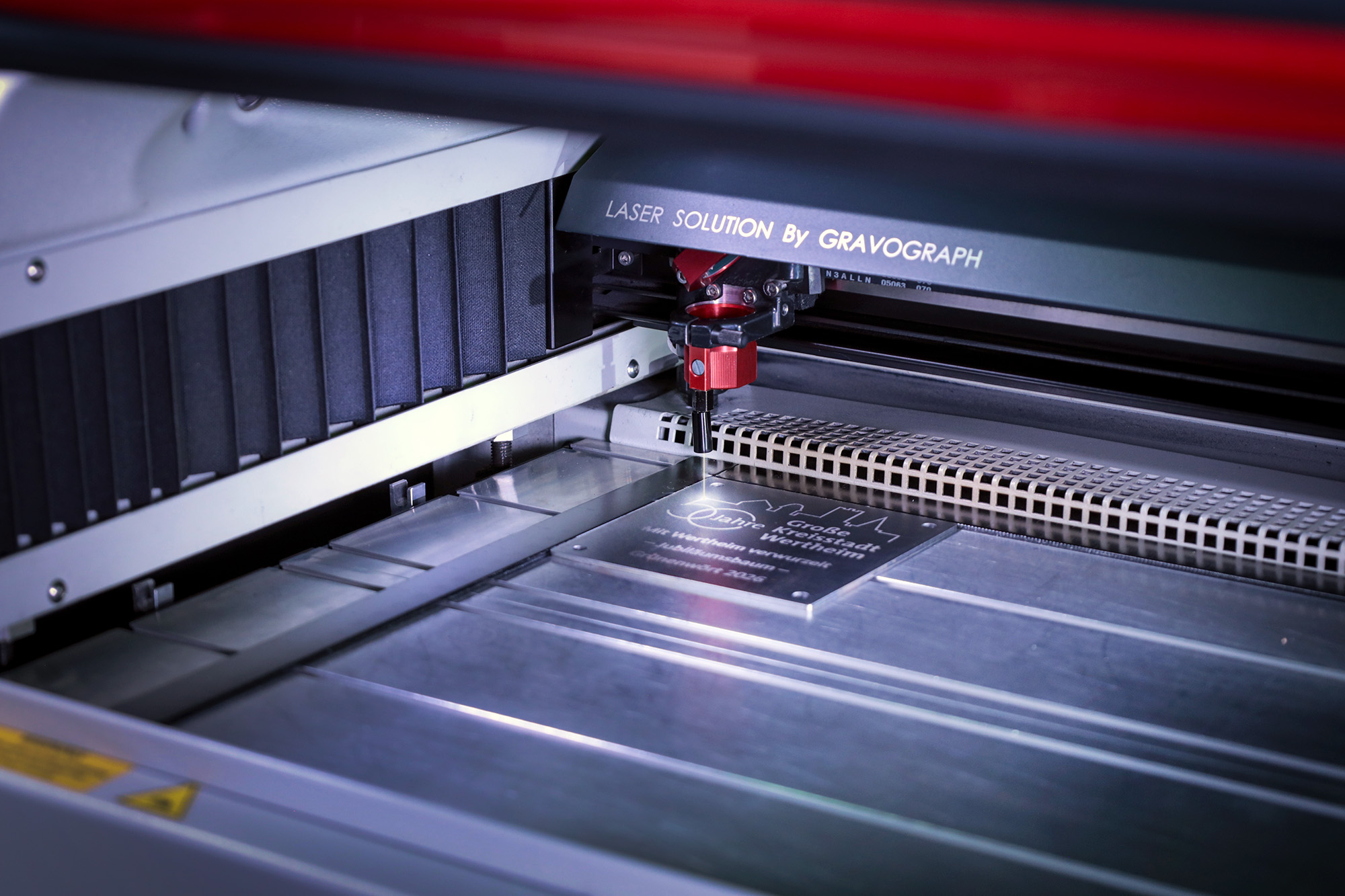

The engraving laser is ideal for engraving small and large objects, both individually and in series, on a wide range of materials such as steel, stainless steel, aluminium and plastic.
No surface pre-treatment is required..
| Engraving area: | 610 x 305 mm |
| Z-axis: | 250 mm |
| Max. dimension: | 760 x 330 x 145 mm |
| Max. whight | 20 kg |
Flexible, Precise – and please without tooling costs?
That´s what we do.

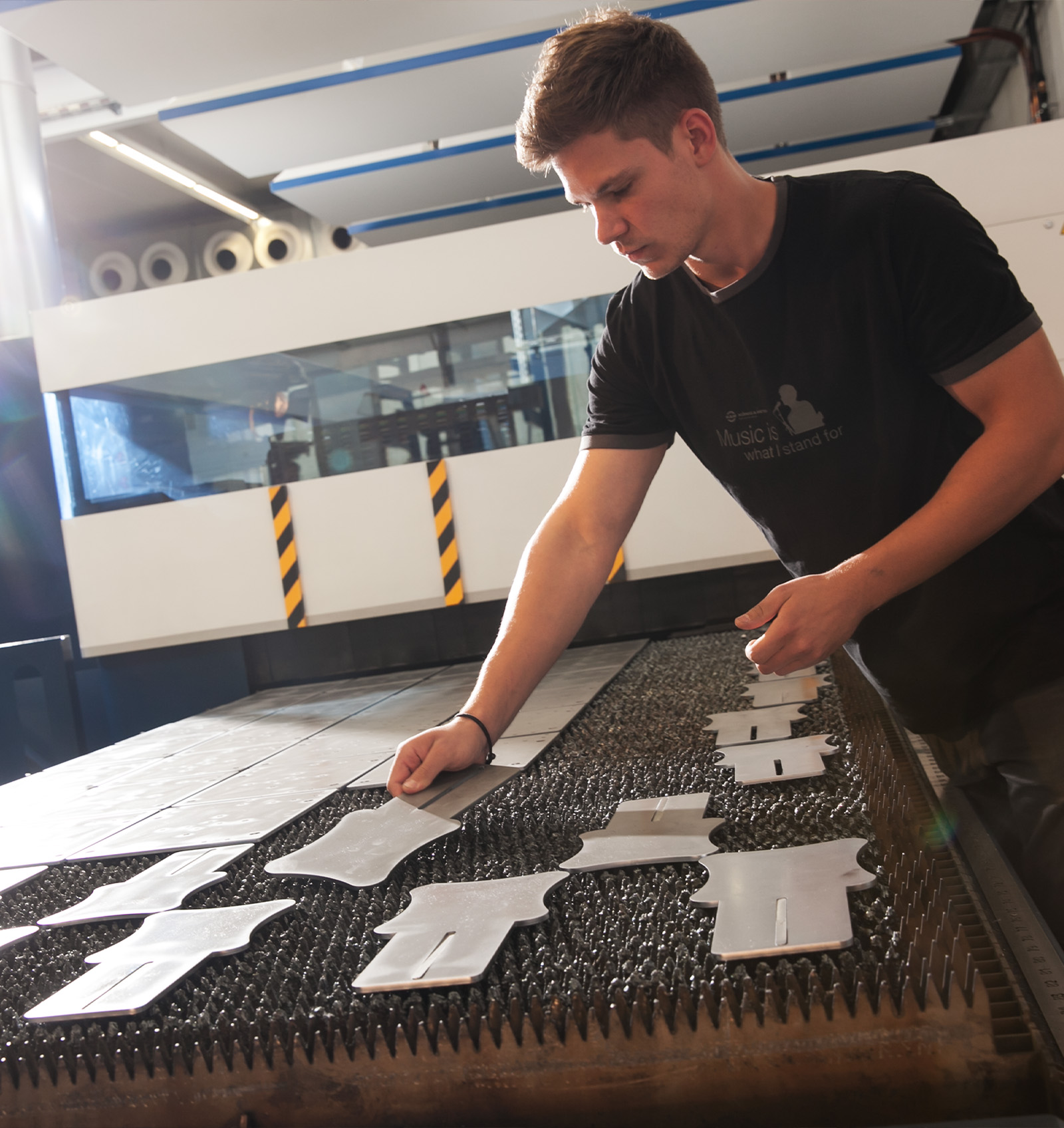

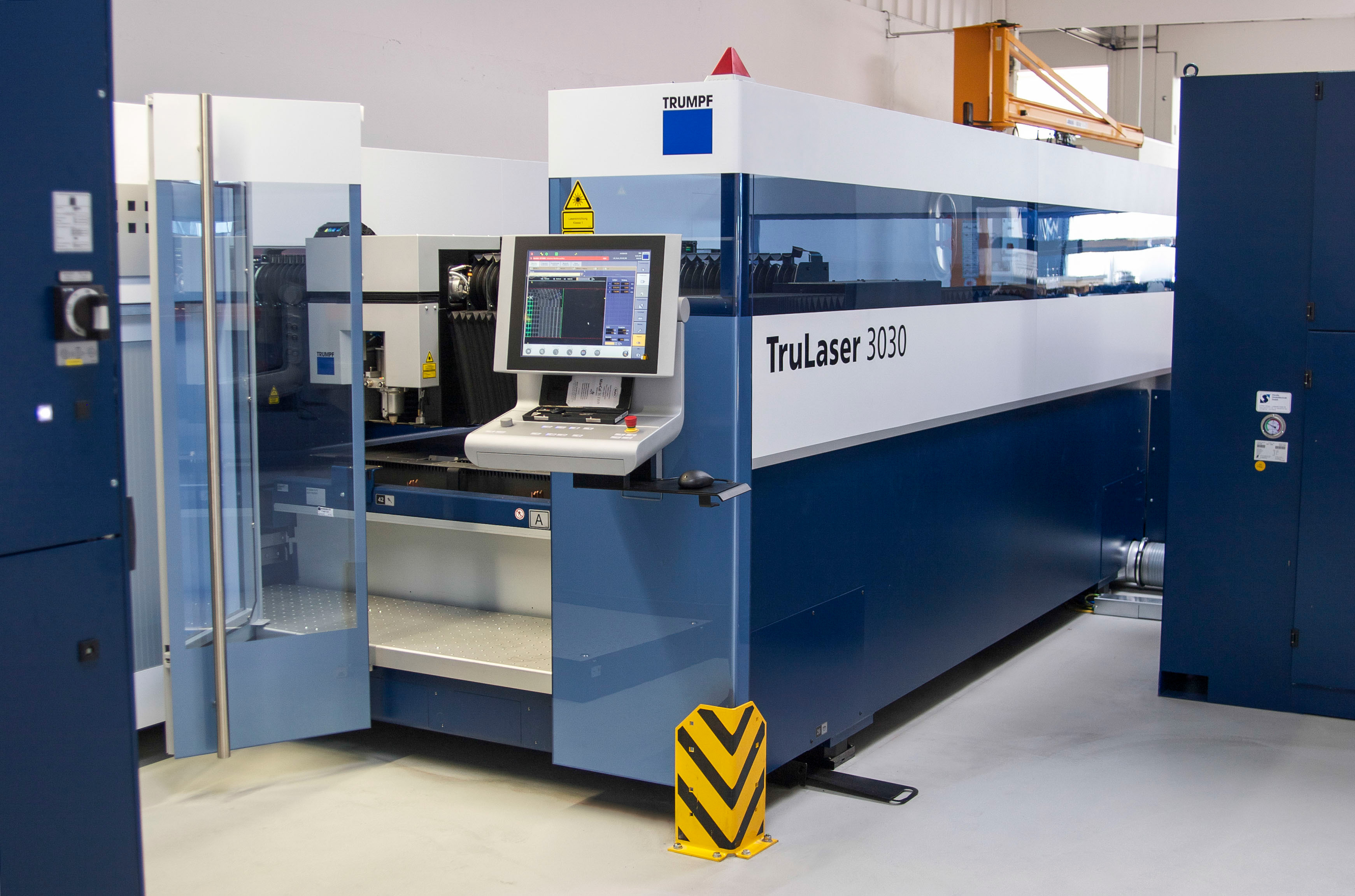

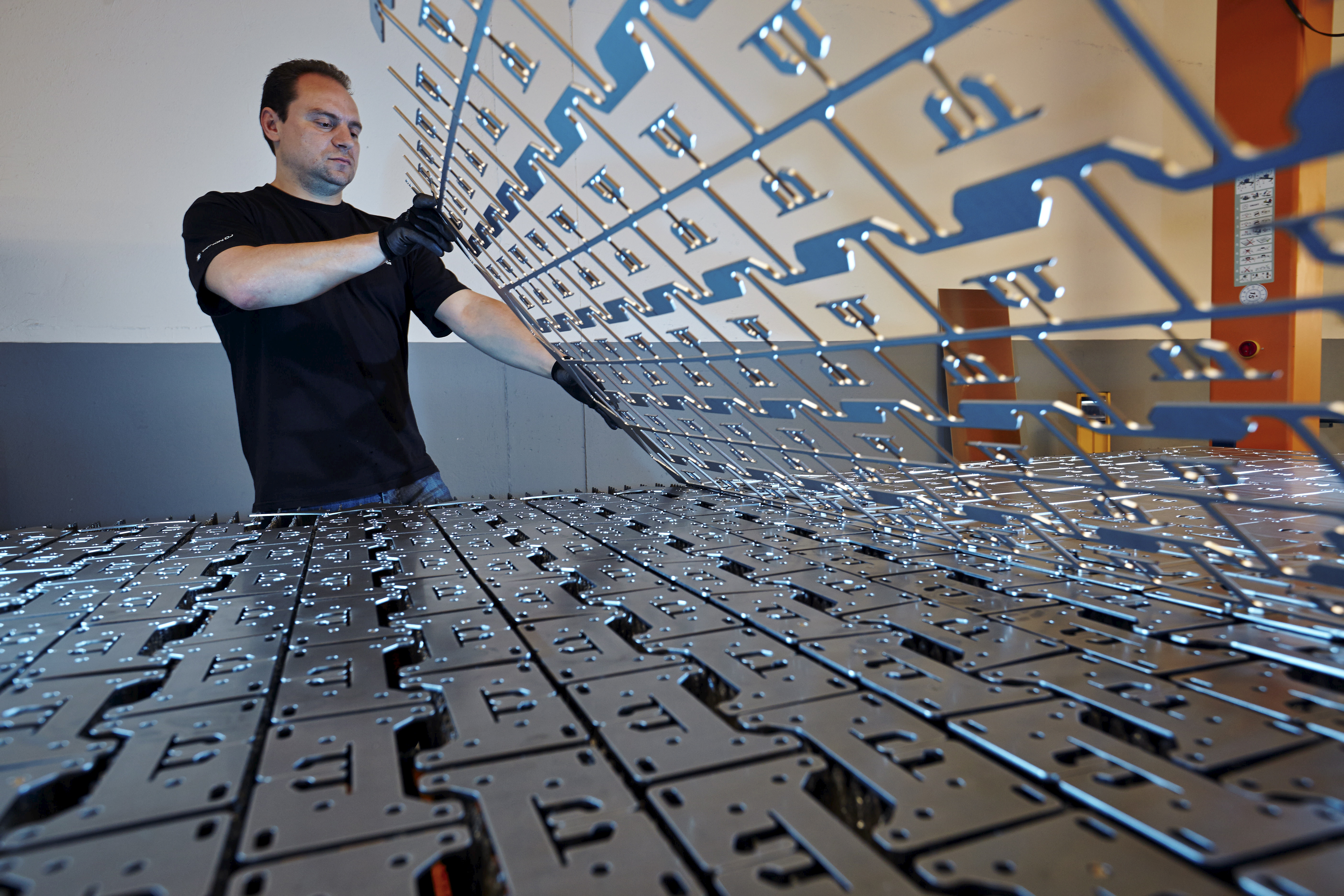

You have the idea, we have the right technology. Whether a pilot series or large volumes, we deliver precision work product after product with our CNC- controlled flatbed laser machine. In doing so, the elimination of tools is espe- cially noticeable in small production runs with advantageous per-piece costs. Steel, stainless steel or aluminum sheets can be cut in any desired form. And with our flatbed laser machine, any desired changes can immediately flow into ongoing production. The manufactured parts are nearly burr-free and ready for any further processing.

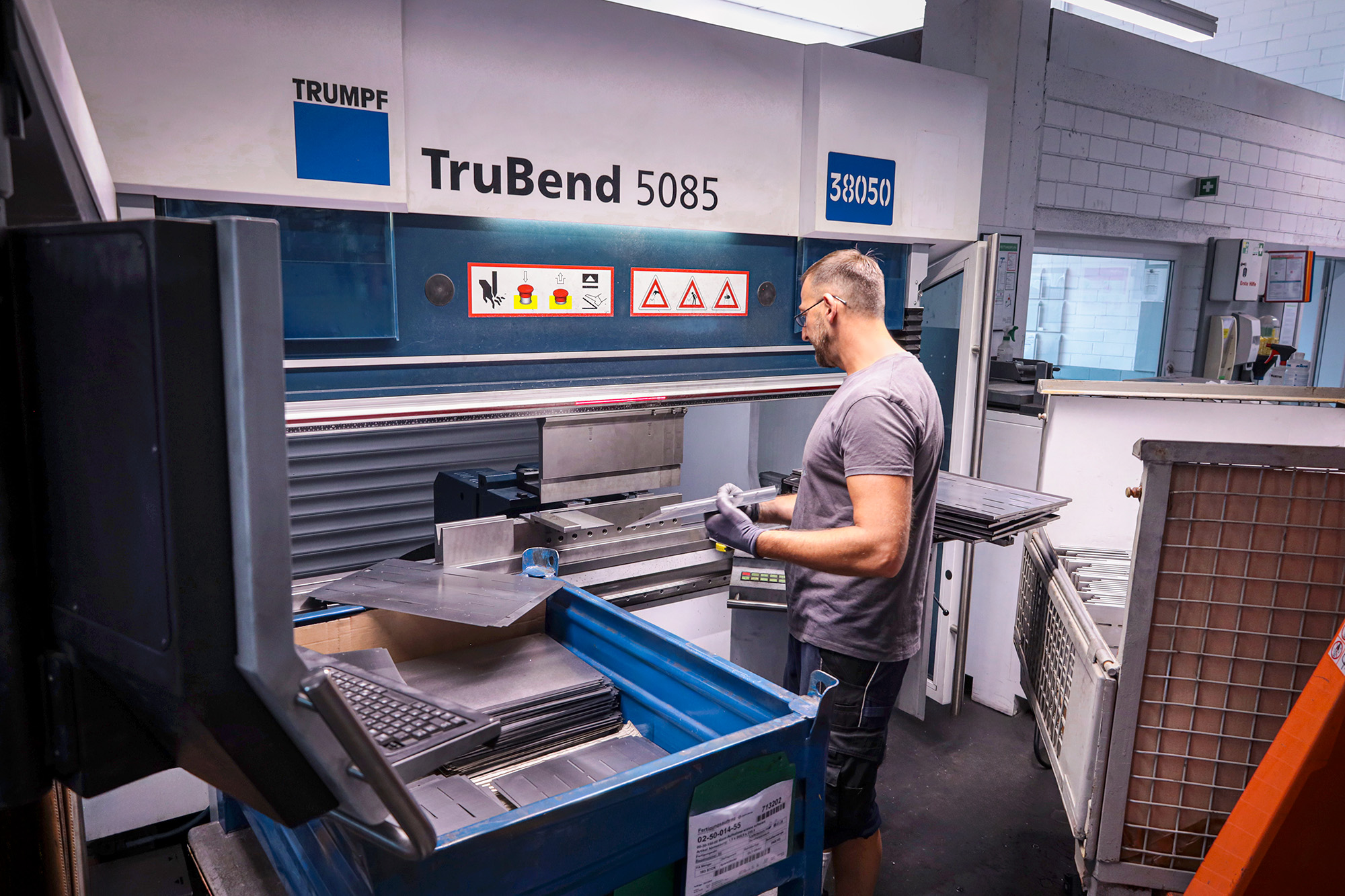

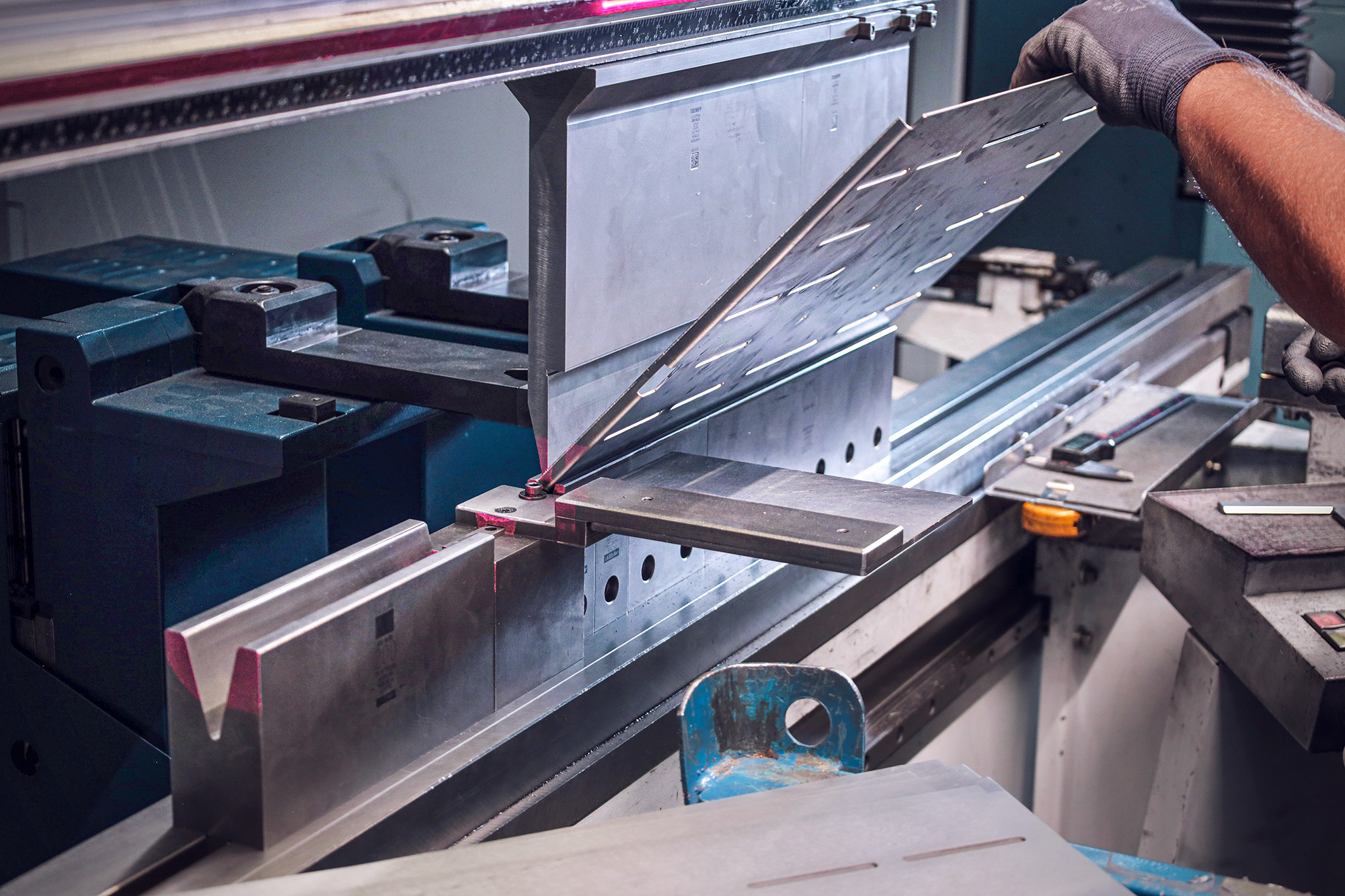

Among other possibilities, our CNC-controlled bending machine is an option for further processing. It can bend sheet metal with a thickness of up to 10 mm with the greatest possible precision.
Flat grinding machine for deburring and edge rounding
| Flatbed laser machine: | Maximum power: 4,000 W |
| Sheet metal dimensions: up to 3,000 x 1,500 mm | |
| CNC press brake (850 kN) Sheet thickness: 0.5–10 mm Maximum sheet length: 2,000 mm | |
| Materials processed: | Steel, stainless steel, aluminium |
| Maximum sheet thickness: | Steel: 20 mm Stainless steel: 15 mm Aluminium: 10 mm |
