Compact Stage Series
Space-saving stands for speakers and lights. All information in our ePaper on Compact Stage series from 2024.
24623

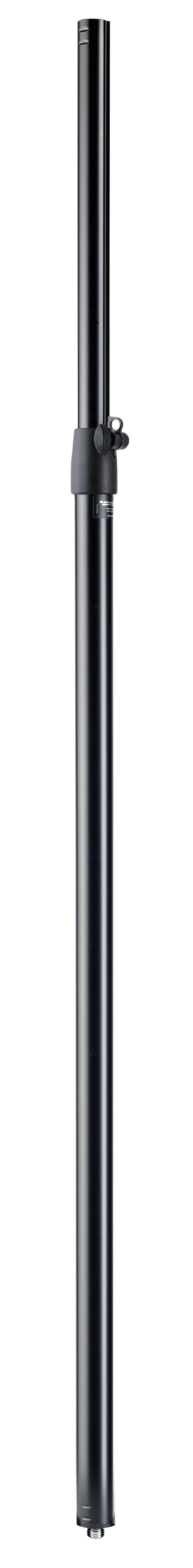

Distance rod

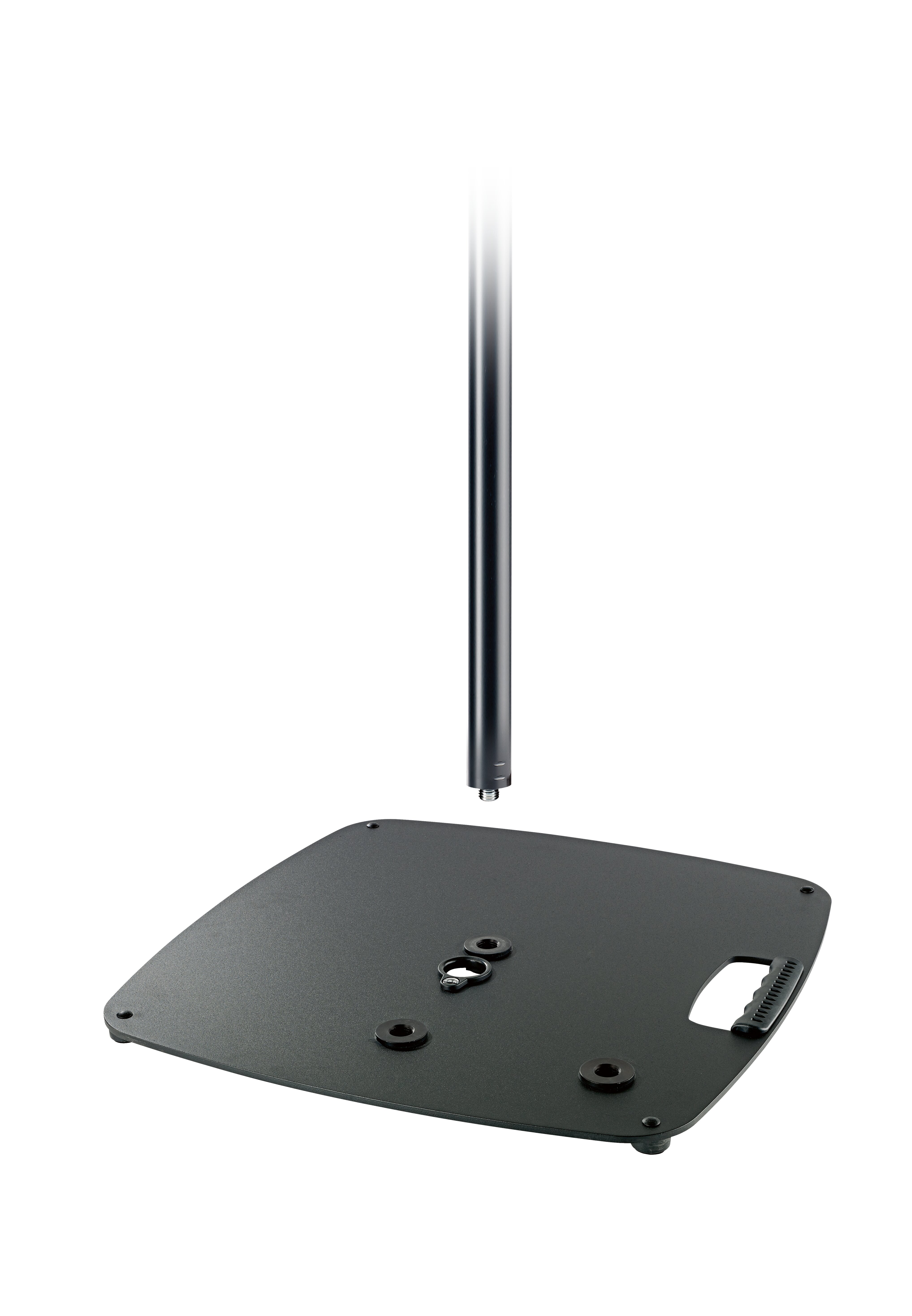

Extra high steel tube combination for use with various base plates with M20 threaded bushings. The extension tube has a diameter of 35 mm to accommodate speaker cabinets with flange adapter. The height is fixed with a safety hook and secured by a clamping screw for a vibration-free and firm... more
Extra high steel tube combination for use with various base plates with M20 threaded bushings. The extension tube has a diameter of 35 mm to accommodate speaker cabinets with flange adapter. The height is fixed with a safety hook and secured by a clamping screw for a vibration-free and firm fit. The slim design of the clamp allows space-saving transport and ensures a stylish appearance. The usable height is between 1,400 and 2,400 mm and is adjusted in 5 steps of 200 mm. The integrated M10 threaded bushing allows the attachment of a truss or the direct mounting of lights.
Product variant:
24623-023-55
-
black
Technical Data
EAN
4016842119660
Height
from 1,400 to 2,400 mm
Height adjustment
locking screw and safety hook
Material
steel
Max. load capacity
25 kg
Rod combination
2-piece folding design
Special features
for precise and vertical fit
Tube end(s)
diameter 35 mm, integrated threaded bush M10 for crossbars; threaded bolt M20
Type
black
Weight
3.7 kg
