19674 Speaker tilt connector »Ring Lock«

For speaker stands with tube diameter of 35 mm. A unique patented expanding mandrel system provides a tight and firm fit for the speaker. The moveable plastic splints separate the speaker from the stand creating a vibration-free connection. Easy to use ring lock. more
Preview: 19674-000-55.jpg Preview: Speaker tilt connector »Ring Lock« Preview: Preview: Speaker tilt connector »Ring Lock«

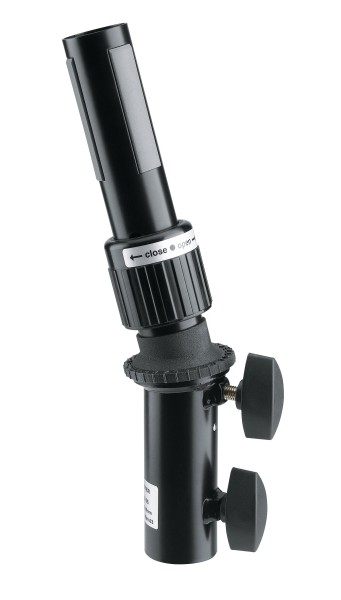

Speaker tilt connector »Ring Lock«

Product variant 19674-000-55 - black
  • Order number: 19674-000-55
  • Open text field 1: 19674

For speaker stands with tube diameter of 35 mm. A unique patented expanding mandrel system provides a tight and firm fit for the speaker. The moveable plastic splints separate the speaker from the stand creating a vibration-free connection. Easy to use ring lock.

Product data

For speaker stands with tube diameter of 35 mm. A unique patented expanding mandrel system provides a tight and firm fit for the speaker. The moveable plastic splints separate the speaker from the stand creating a vibration-free connection. Easy to use ring lock.

Angle of inclination:

0° to 15°

EAN:

4016842816279

Function:

to slip on stand, to insert into speaker

Weight:

0.85 kg

Height:

300 mm

Material:

steel

Max. load capacity:

25 kg

Suitable for tubing diameter of:

35 mm

Tube end(s):

»Ring Lock« diameter 35 to 37 mm

Type:

black

Special features:

patented expanding mandrel system »Ring Lock«; vibration-free connection due to moveable plastic splints; secured by locking screws; with setting scale

Artikel
Artikel
Downloads

Downloads

Installation instructions (PDF)

Spare part list (PDF)

Data sheet (PDF)

Package (.ZIP)
