24161 Universal speaker wall mount

Flexible and compact wall mount for loud speakers up to 15 kg. The variable wall mount has two adjustments - angle and direction. In addition, it keeps the speaker close to the wall. Whether it is used for loud speakers that are equipped with vertical or horizontal drill holes, both options can ... more
Product variant 24161-000-56 - structured black
  • 24161-000-56
  • 24161

Flexible and compact wall mount for loud speakers up to 15 kg. The variable wall mount has two adjustments - angle and direction. In addition, it keeps the speaker close to the wall. Whether it is used for loud speakers that are equipped with vertical or horizontal drill holes, both options can be mounted easily and securely to the wall mount. The decor-wall plate rounds off the look of this attractive product.

Product data

Flexible and compact wall mount for loud speakers up to 15 kg. The variable wall mount has two adjustments - angle and direction. In addition, it keeps the speaker close to the wall. Whether it is used for loud speakers that are equipped with vertical or horizontal drill holes, both options can be mounted easily and securely to the wall mount. The decor-wall plate rounds off the look of this attractive product.

Adjustment:

continuous

Angle of inclination:

-25° bis 45°

Bearing plate:

100 x 90 mm

Ceiling mounting plate diameter:

95 mm

EAN:

4016842824526

Weight:

0.711 kg

Material:

steel

Max. load capacity:

15 kg

Mounting:

attaches to walls

Spacing of holes:

from 70 to 76.2 mm

Special features:

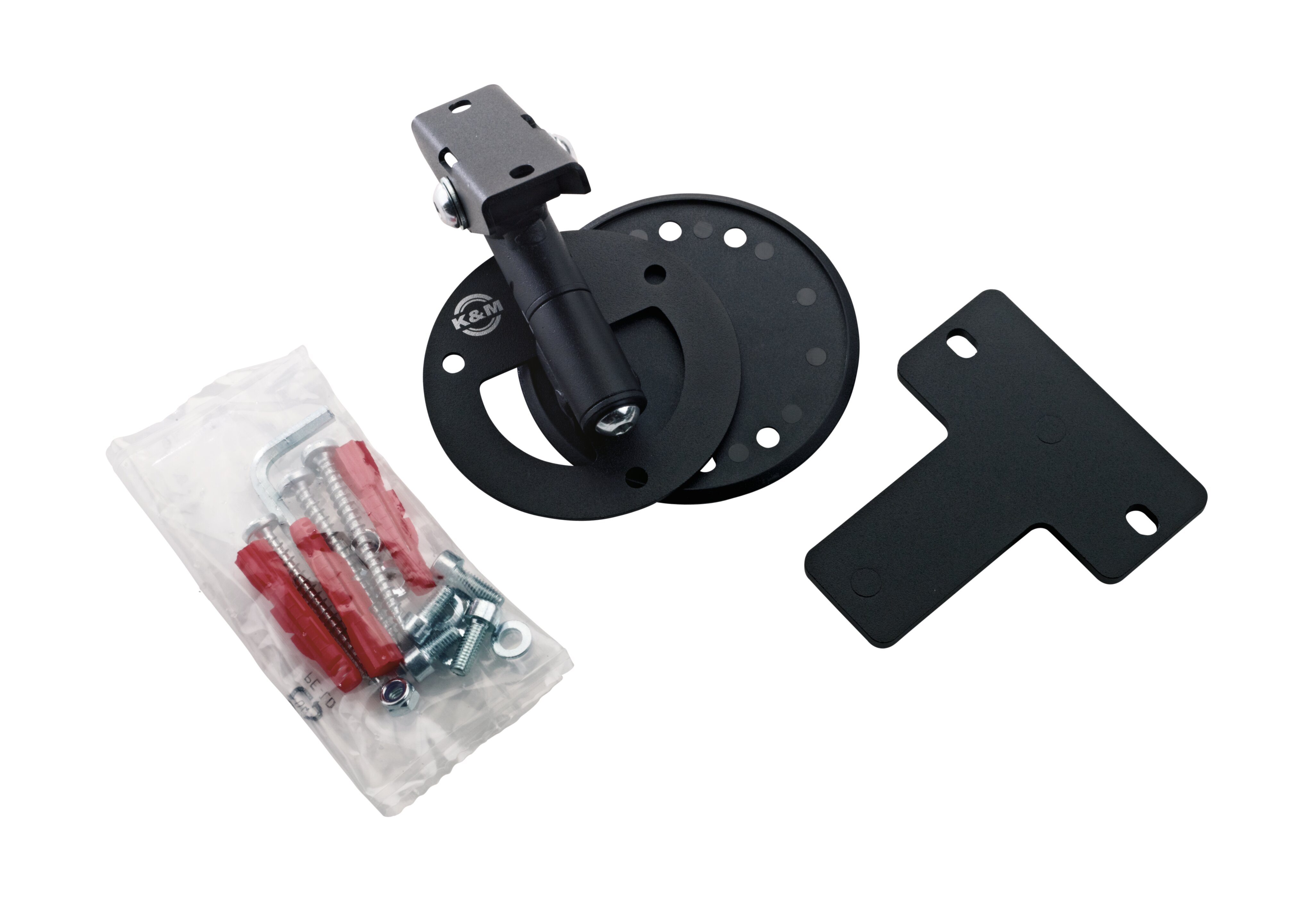

mounting material included

Swivel:

110°

Type:

structured black

Wall clearance:

65 mm
