19420

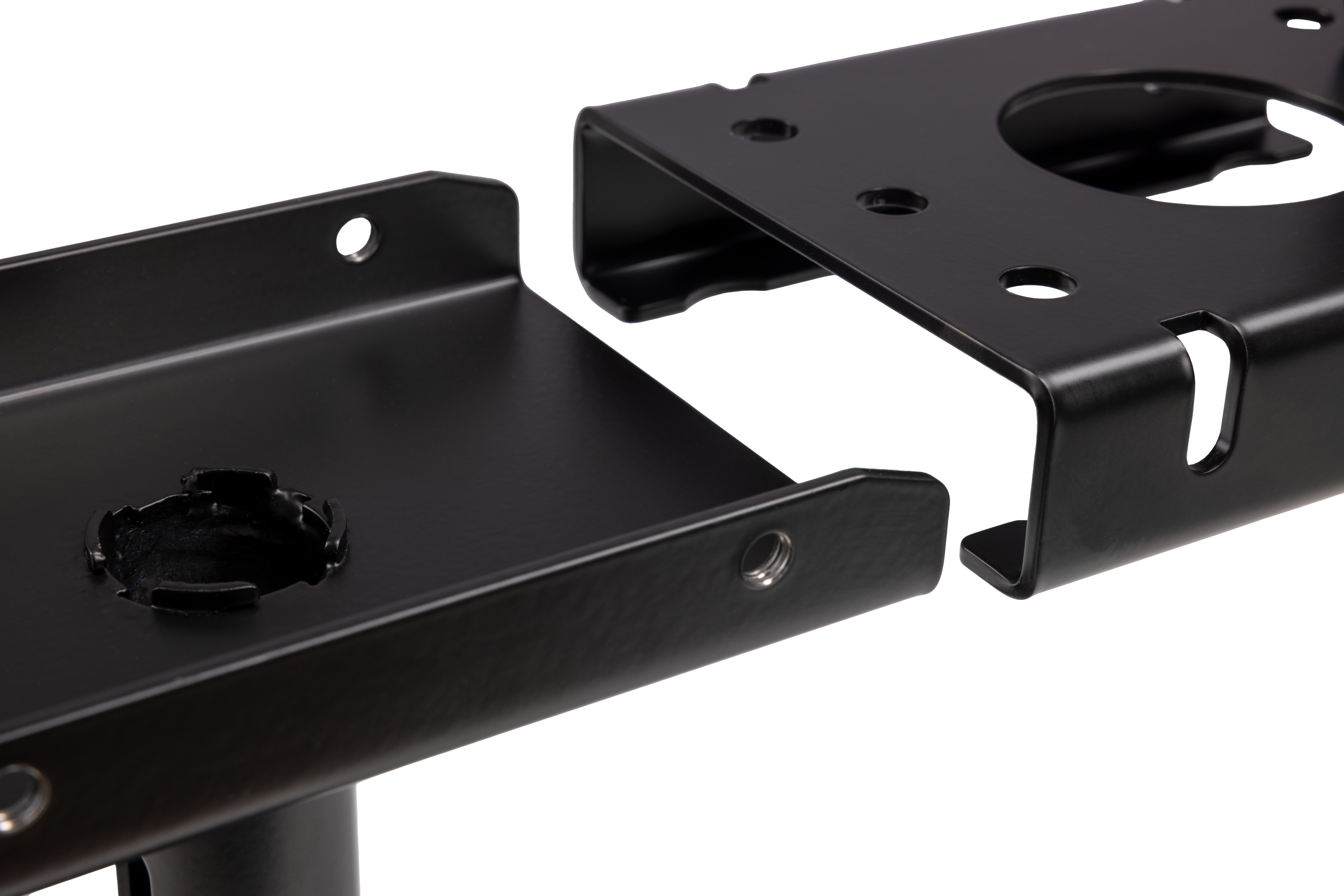

Speaker ceiling mount
The speaker ceiling mount allows equipment to be installed on a ceiling. Compatible with the Yamaha loudspeakers below, this bracket allows the position and angle of the speakers to be easily adjusted. Easy mounting by convenient hooking in and screw locking. Direct fit: DBR15, DBR12, DBR10, CBR15,... more
The speaker ceiling mount allows equipment to be installed on a ceiling. Compatible with the Yamaha loudspeakers below, this bracket allows the position and angle of the speakers to be easily adjusted. Easy mounting by convenient hooking in and screw locking.
Direct fit: DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I, HS7I
Requires Yamaha's U-bracket: DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12, CHR10
Technical Data
Adjustment
continuous
Angle of inclination
0° to 75°
Bearing plate
180 x 90 mm
Ceiling clearance
180 mm
Ceiling mounting plate
160 x 126 mm
EAN
4016842122998
Material
steel
Max. load capacity
25 kg
Mounting
attaches to ceilings
Spacing of holes
60 - 70 mm or 115 - 150 mm
Swivel
90 °
Type
black
Weight
2.2 kg
Special features
Direct fit: DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I, HS7I Requires Yamaha's U-bracket: DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12, CHR10
