19430

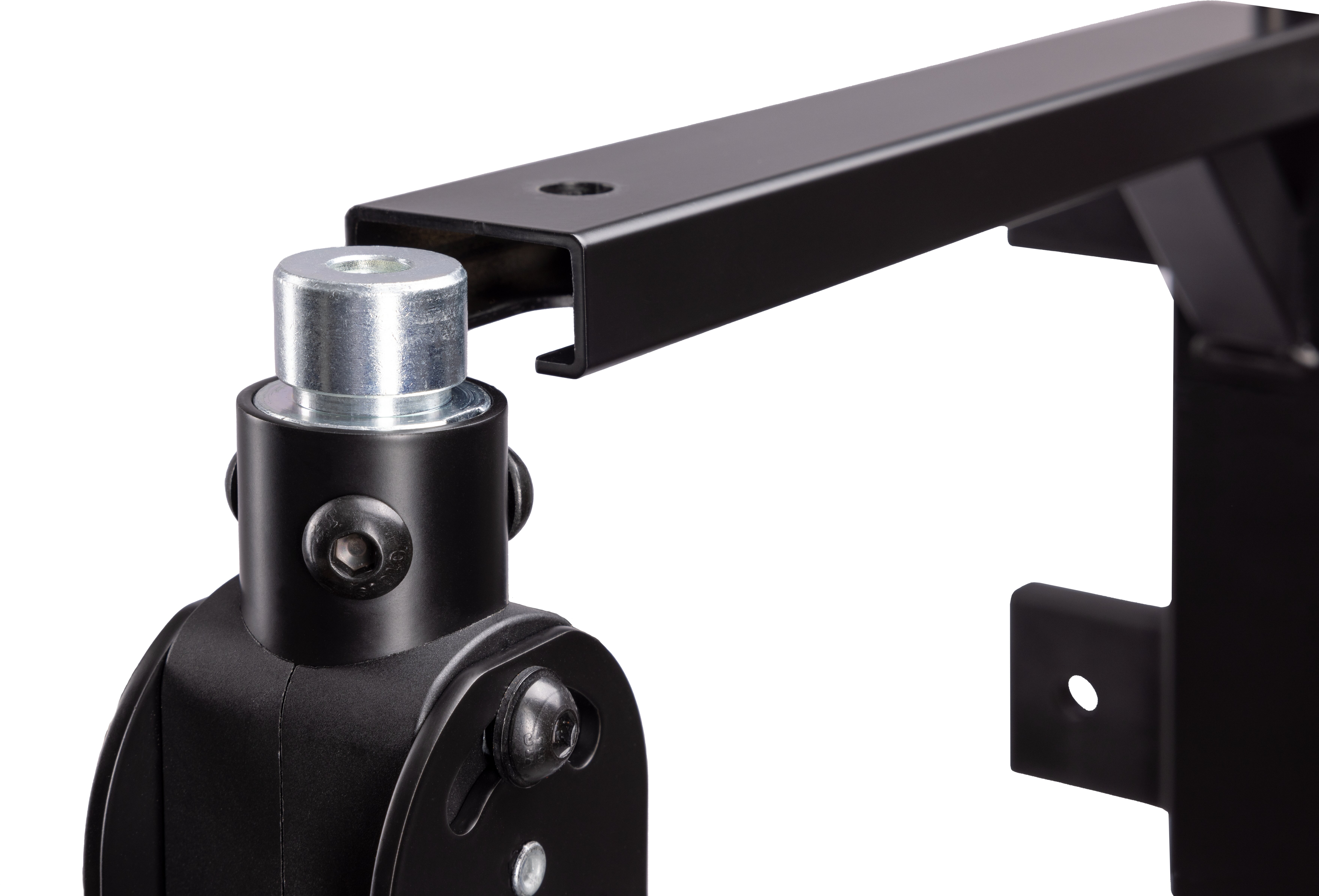

Speaker wall mount (short arm type)
The speaker wall mount allows equipment to be installed on a wall. Compatible with the Yamaha loudspeakers below, this bracket allows the position and angle of the speakers to be easily adjusted. Easy mounting by convenient hooking in and screw locking. Direct fit: DBR12, DBR10, CBR12, CBR10, HS8I,... more
The speaker wall mount allows equipment to be installed on a wall. Compatible with the Yamaha loudspeakers below, this bracket allows the position and angle of the speakers to be easily adjusted. Easy mounting by convenient hooking in and screw locking.
Direct fit: DBR12, DBR10, CBR12, CBR10, HS8I, HS7I
Requires Yamaha's U-bracket: DZR10, CZR10, DXR10mkII, DXR8mkII, DHR10, CHR10
Product variant:
19430-000-55
-
black
Technical Data
Adjustment
continuous
Angle of inclination
-45° to 45°
Bearing plate
180 x 90 mm
EAN
4016842122936
Material
steel
Max. load capacity
25 kg
Mounting
attaches to walls
Spacing of holes
60 - 70 mm or 115 - 150 mm
Swivel
360 °
Type
black
Wall clearance
271 mm
Weight
2.3 kg
Special features
Direct fit: DBR12, DBR10, CBR12, CBR10, HS8I, HS7I Requires Yamaha's U-bracket: DZR10, CZR10, DXR10mkII, DXR8mkII, DHR10, CHR10
