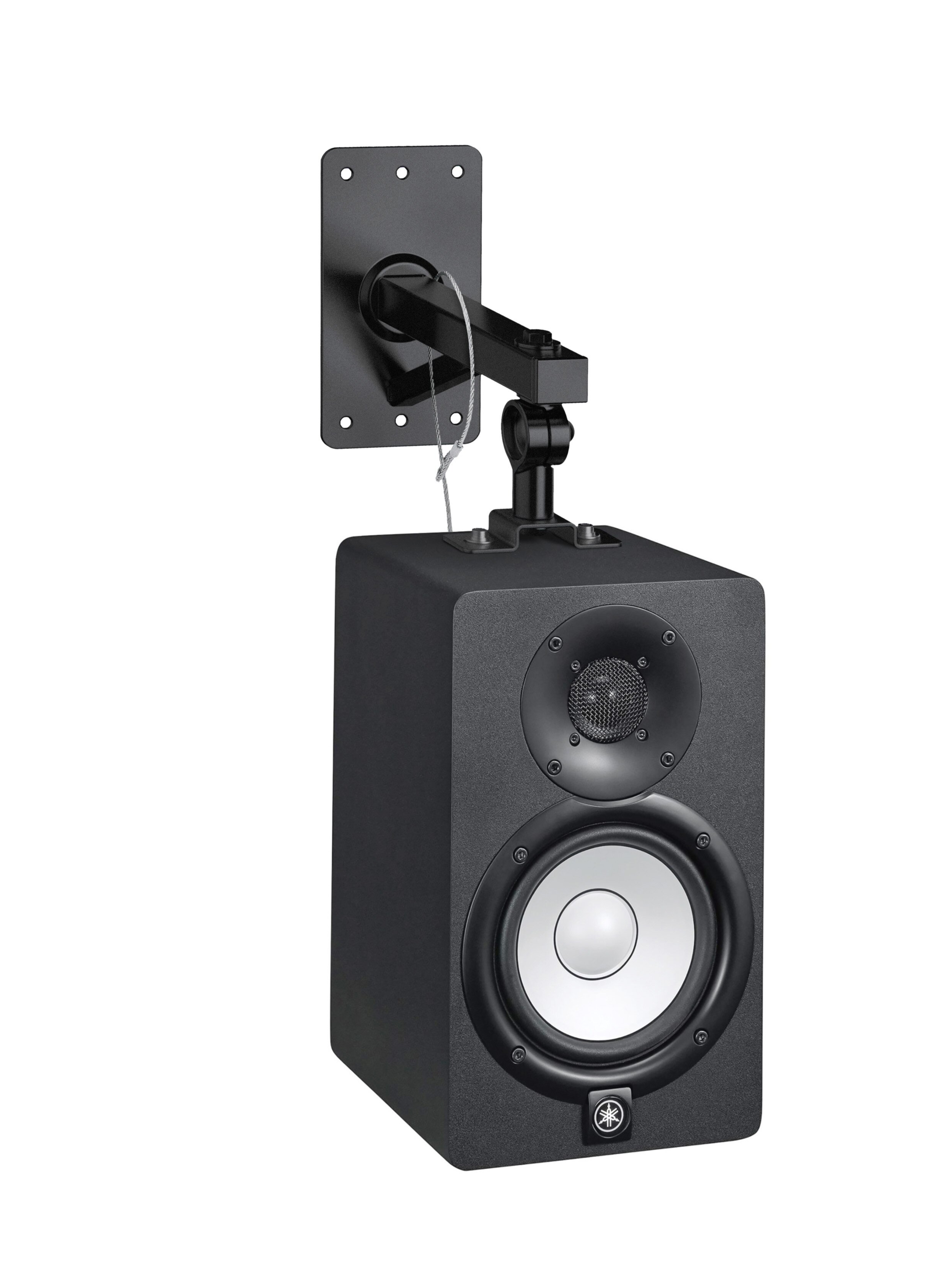

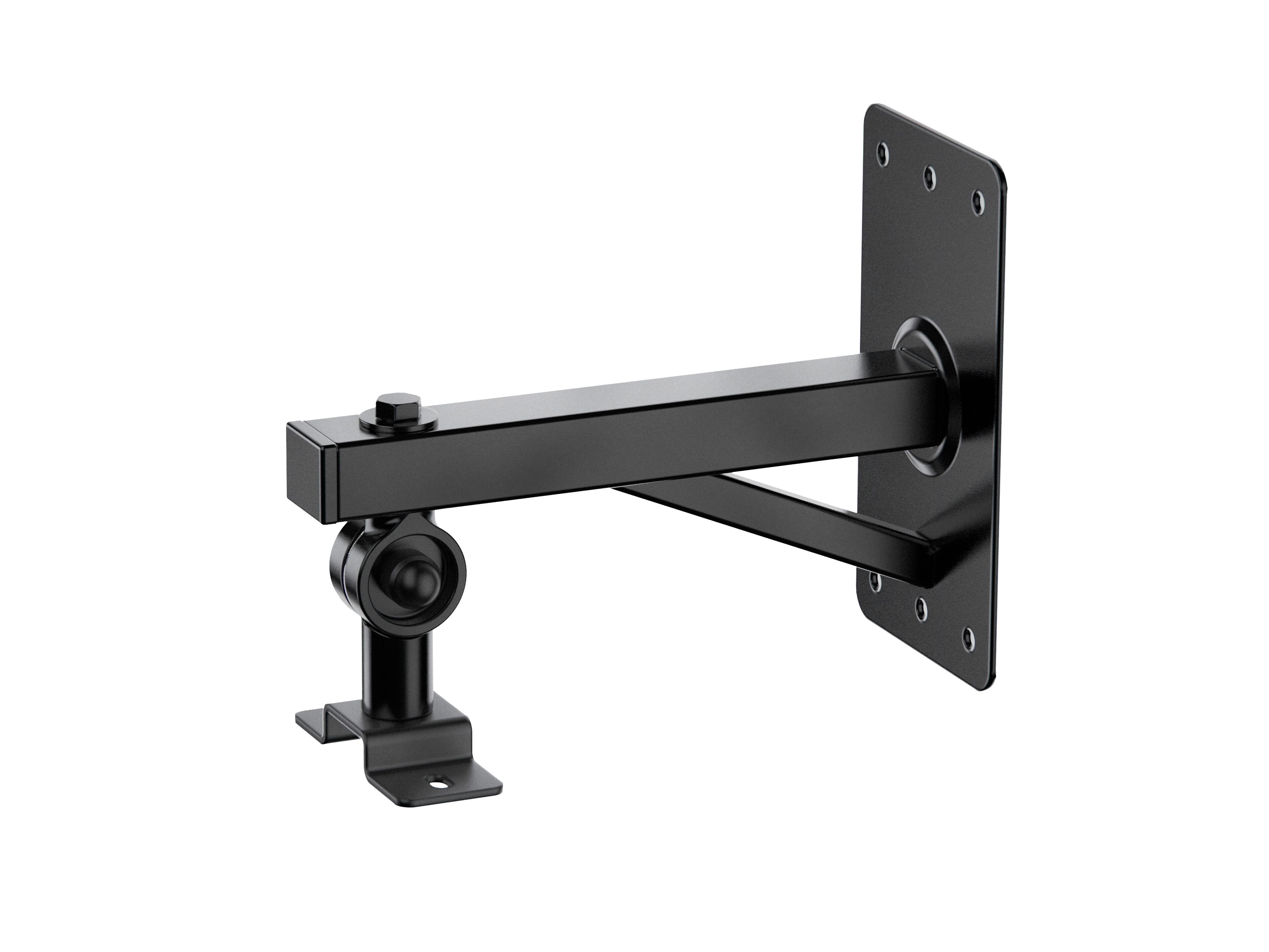

Speaker wall/ ceiling mount
The Speaker wall/ ceiling mount allows equipment to be installed on a wall or ceiling. Compatible with the Yamaha speakers below, this bracket allows the position and angle of the speakers to be easily adjusted.
Direct fit: HS5I, VXS5, MSP3A, MS101-4
Product variant:
19440-000-55
-
black
Technical Data
Adjustment
toothed joint with carriage bolt
Angle of inclination
-45° to 45°
Bearing plate
90 x 35 mm
EAN
4016842123483
Material
steel
Max. load capacity
6 kg
Mounting
attaches to walls and ceilings
Spacing of holes
60 to 70 mm
Special features
steel safety cable included; direct fit: HS5I, VXS5, MSP3A, MS101-4
Swivel
360 °
Type
black
Wall clearance
180 mm
Wall plate
170 x 95 mm
Weight
1.1 kg
