Speaker wall mount
Speaker wall mount
24140

Speaker wall mount

Speaker wall mount

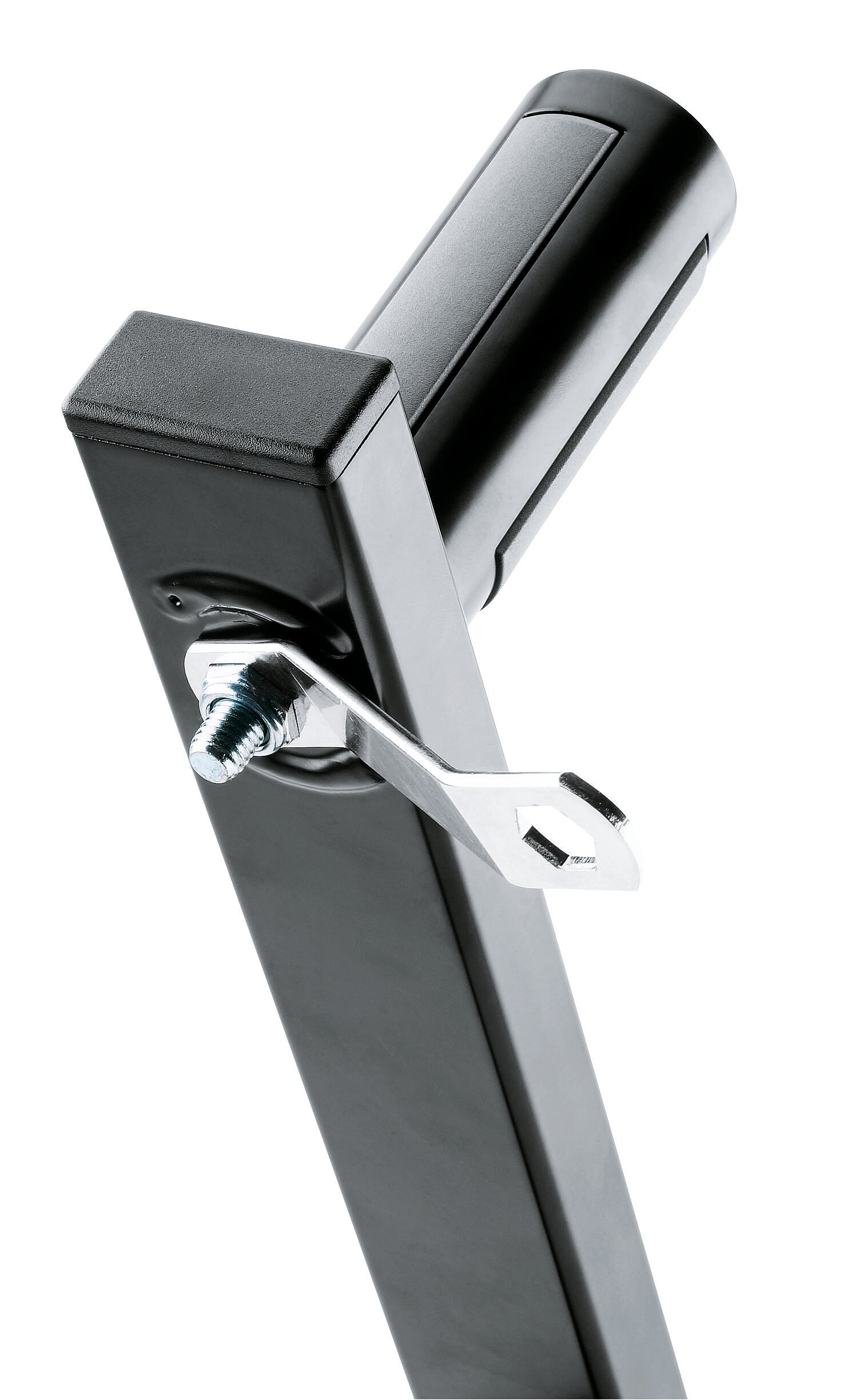

Wall mount for speaker boxes with 36 mm flange mounting. This design largely conceals the wall mounting with the speaker box. Very strong and sturdy design, intended for a max. load of 35 kg. The speaker distance from the wall can be individually adjusted in 4 positions.

Product variant: 24140-000-55 - black
Data sheet Installation instructions Productlabel

Technical Data

EAN

4016842829224

Material

steel

Max. load capacity

35 kg

Mounting

attaches to walls

Mounting bolt

diameter 35 mm x 85 mm

Special features

speaker distance from the wall can be adjusted in 4 positions

Type

black

Wall-to-bolt clearance

225/255/285/315 mm

Weight

2.6 kg

Downloads

Data sheet Installation instructions Package (ZIP)
