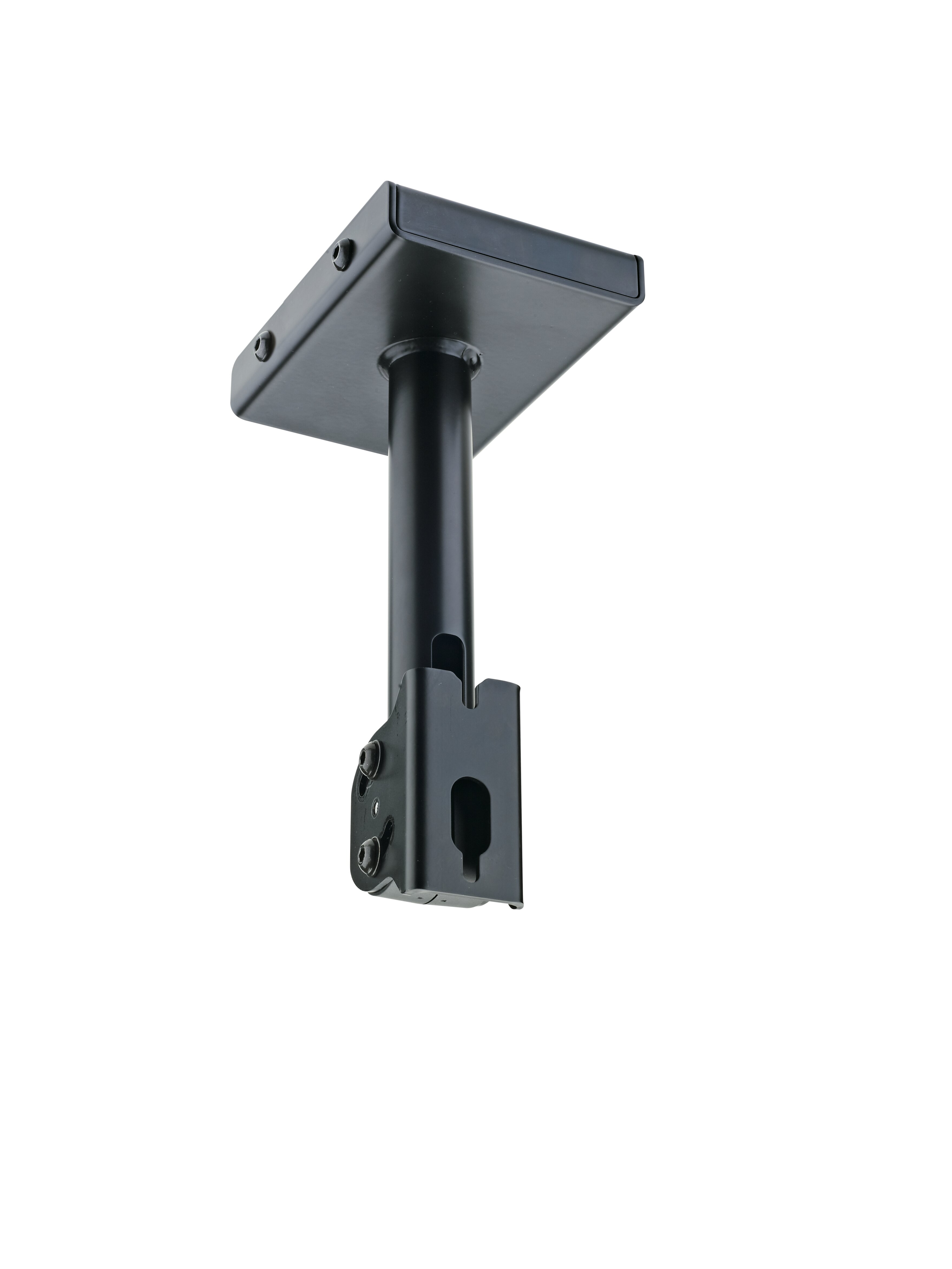

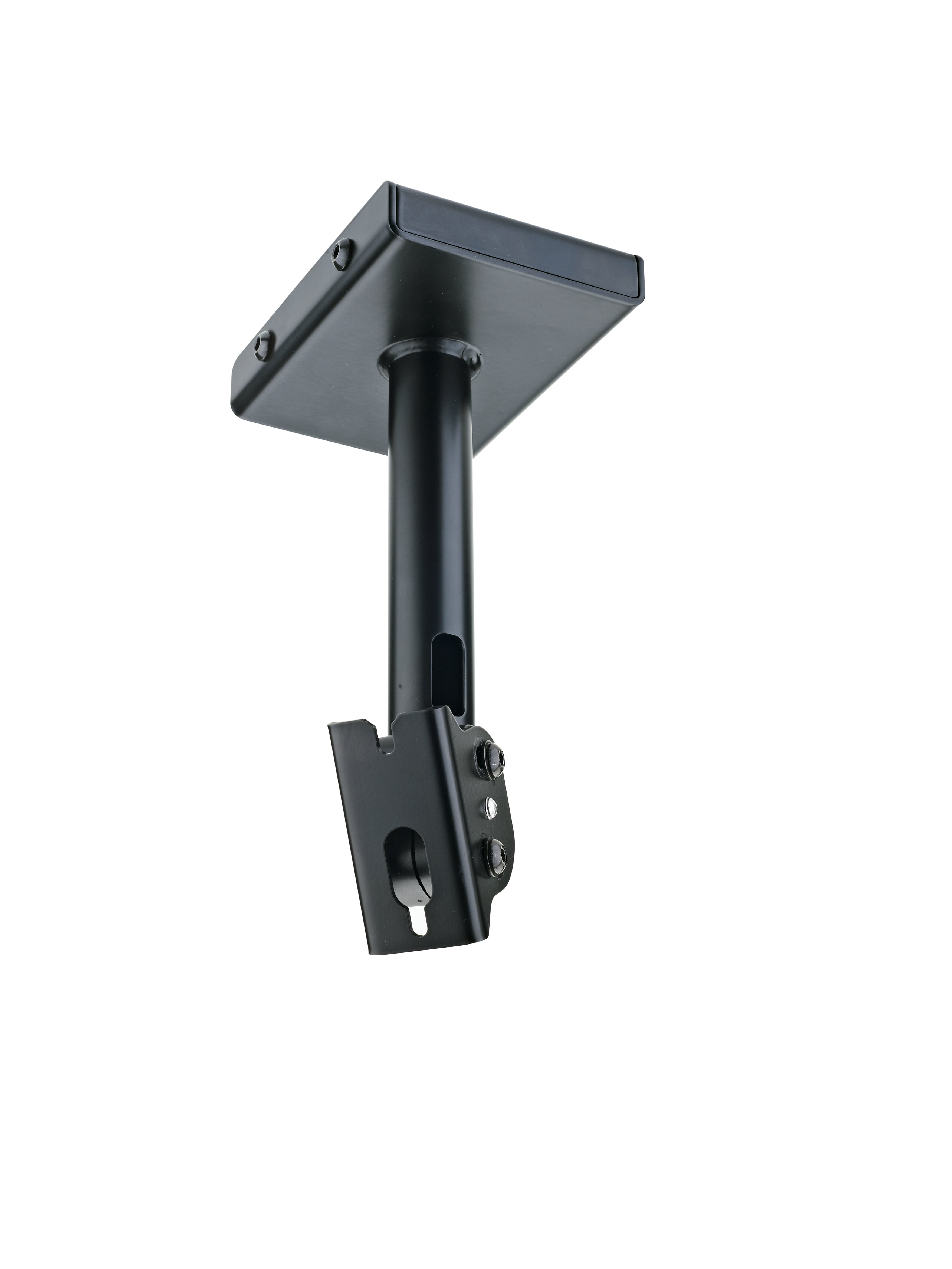

Speaker ceiling mount
Robust and useful loudspeaker ceiling mount with 250 mm distance and internal cable management. The swivel area is +/-45 °. Within the parameters - the settings range from 0 to 45°. The clamping bracket is for loudspeakers with a vertical mounting template from 70 to 76.2 mm. For other attachment... more
Robust and useful loudspeaker ceiling mount with 250 mm distance and internal cable management. The swivel area is +/-45 °. Within the parameters - the settings range from 0 to 45°. The clamping bracket is for loudspeakers with a vertical mounting template from 70 to 76.2 mm. For other attachment possibilities additional adapter brackets are available. A mounting bracket with side and central cable management makes mounting to the ceiling easier.
Product variant:
24496-000-55
-
black
Technical Data
Adjustment
continuous
Angle of inclination
0° to 45°
Bearing plate
90 x 47 mm
Ceiling clearance
250 mm
Ceiling mounting plate
160 x 118 mm
EAN
4016842827886
Material
steel
Max. load capacity
25 kg
Mounting
attaches to ceilings
Spacing of holes
from 70 to 76.2 mm
Special features
easy mounting by convenient hooking in and screw locking; internal cable management
Swivel
90 °
Type
black
Weight
1.79 kg
