Speaker wall mount
Speaker wall mount
Speaker wall mount
24110

Speaker wall mount

Speaker wall mount

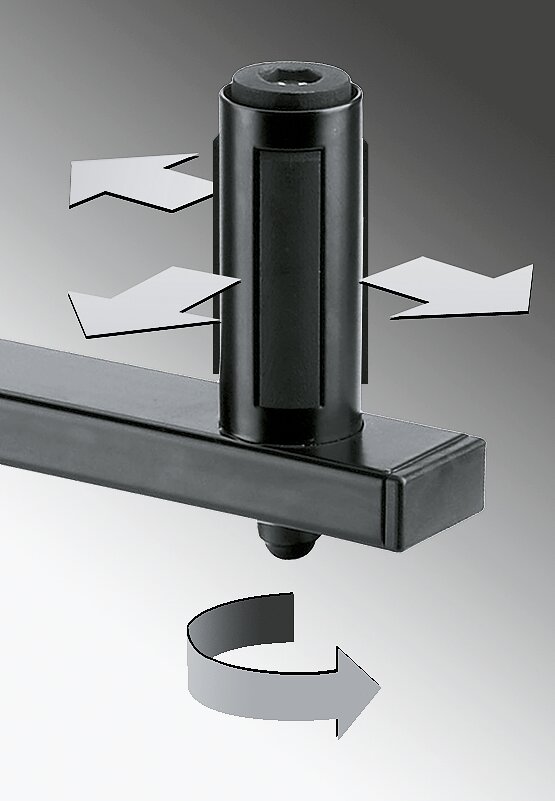

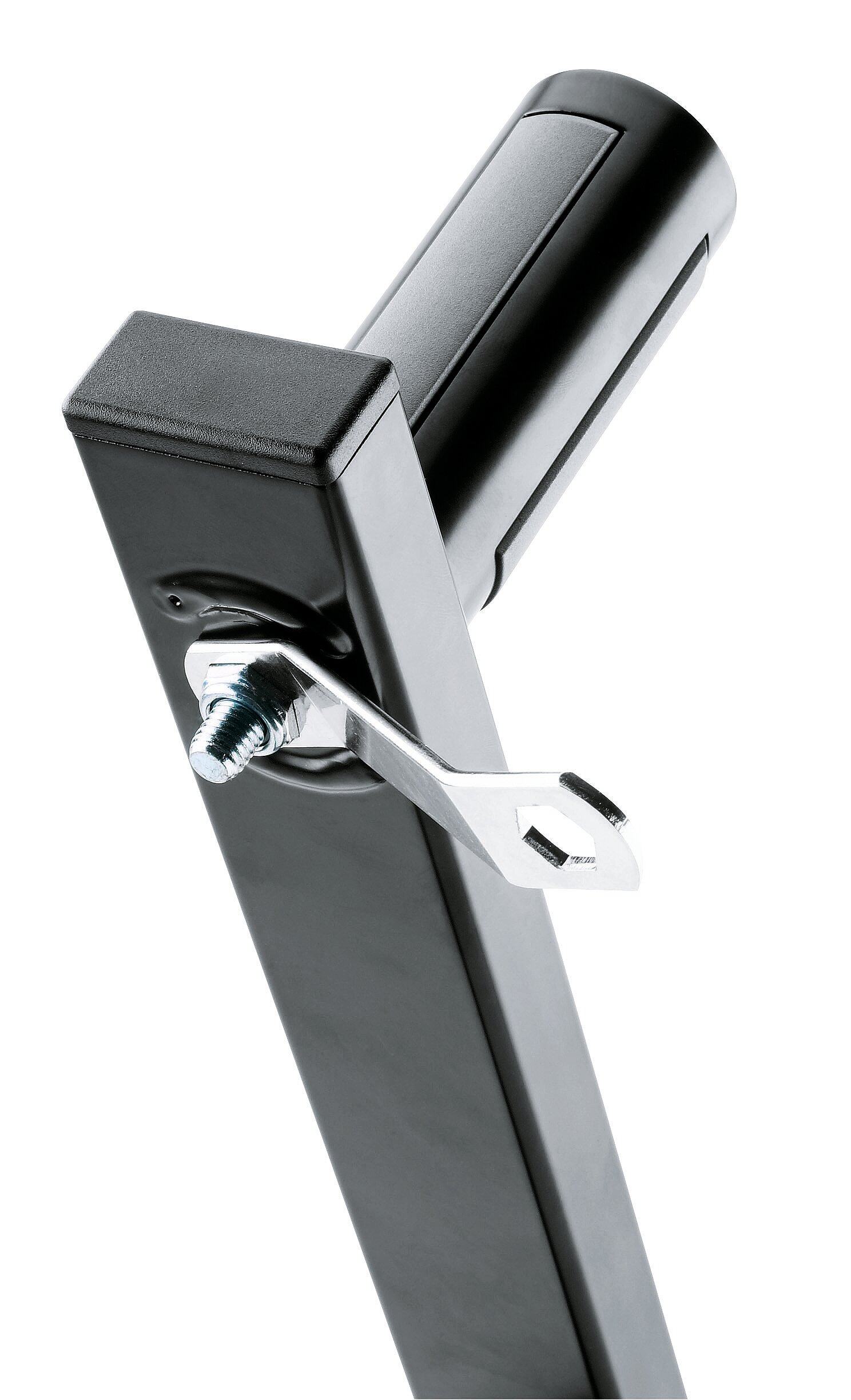

Screw-on wall mount with innovative, patented straddling bearing-anchors. Suitable for speakers with connector diameter of 35/37 mm. This mount provides simple attachment and guaranteed effective clamping of speaker in any position.

Product variant: 24110-000-55 - black
Speaker wall mount Speaker wall mount
Data sheet Installation instructions Productlabel

Technical Data

Adjustment

gradual in 11 settings

Angle of inclination

0° to -22°

EAN

4016842814527

Material

steel

Max. load capacity

50 kg

Mounting

attaches to walls

Mounting bolt

straddling bearing-anchors diameter 35 to 37 mm x 85 mm

Type

black

Wall clearance

mm

Wall-to-bolt clearance

440 mm

Weight

2.63 kg

Special features

patented straddling bearing-anchors; guarantee effective clamping of speaker in any position; resonance-optimised construction

Downloads

Data sheet Installation instructions Package (ZIP)
