24120

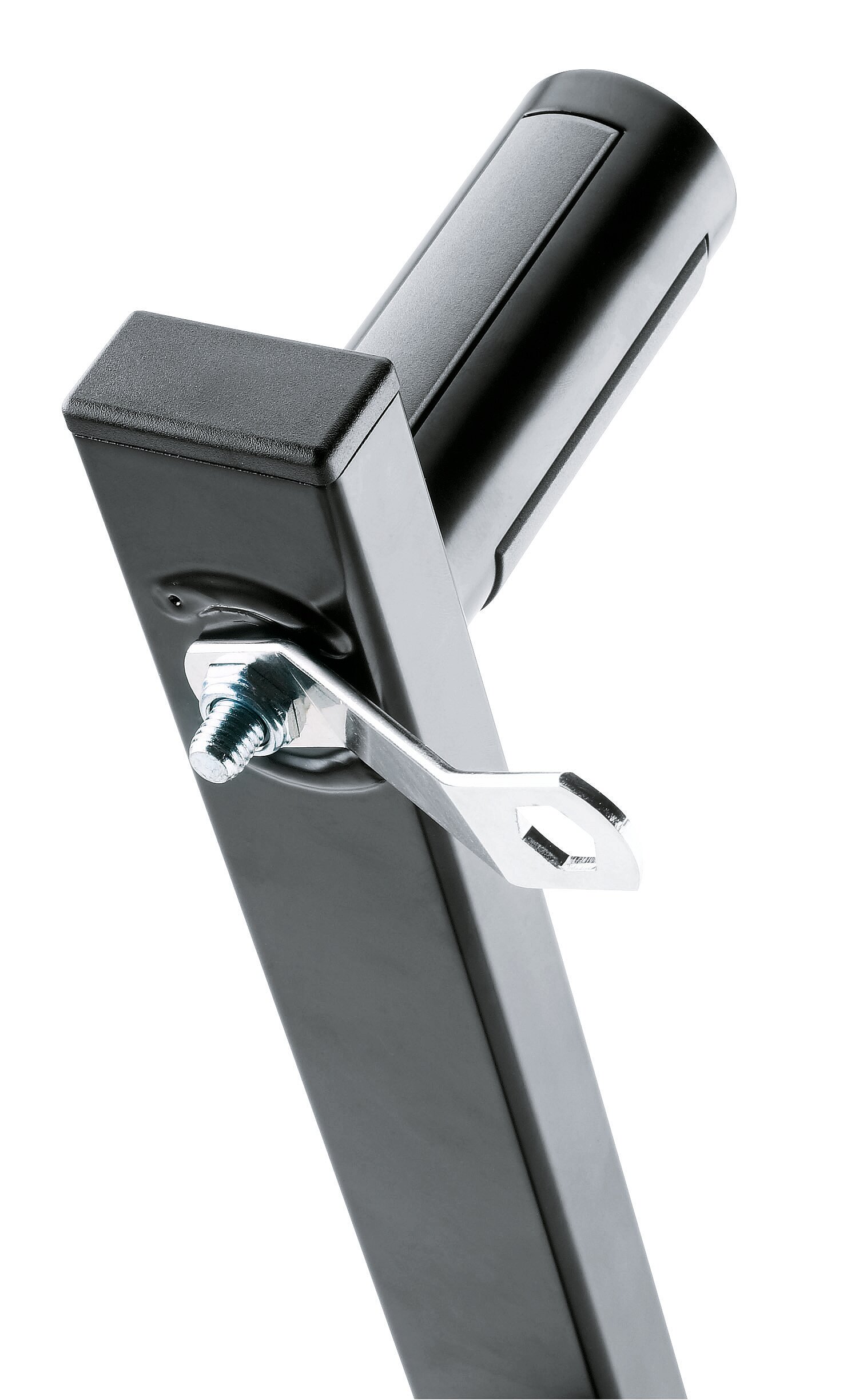

Speaker wall mount
The swivelling and tiltable wall mount holds your speaker at the angle you want. The mount has 11 different tilt settings moving through 22°. The swivel is adjustable to any angle. The patented expanding mandrel for loud speakers with cabinet interiors of diameter from 35 to 37 mm is tightened with... more
The swivelling and tiltable wall mount holds your speaker at the angle you want. The mount has 11 different tilt settings moving through 22°. The swivel is adjustable to any angle. The patented expanding mandrel for loud speakers with cabinet interiors of diameter from 35 to 37 mm is tightened with a key for a non-wobble and low-resonance speaker fit.
Product variant:
24120-000-55
-
black
Technical Data
Adjustment
gradual in 11 settings
Angle of inclination
0° to -22°
EAN
4016842817467
Material
steel
Max. load capacity
50 kg
Mounting
attaches to walls
Mounting bolt
straddling bearing-anchors diameter 35 to 37 mm x 85 mm
Swivel
180 °
Type
black
Wall plate
350 x 140 mm
Wall-to-bolt clearance
441 mm
Weight
4.9 kg
Special features
very flexible; patented straddling bearing-anchors; guarantee effective clamping of speaker in any position; resonance-optimised construction
