24169

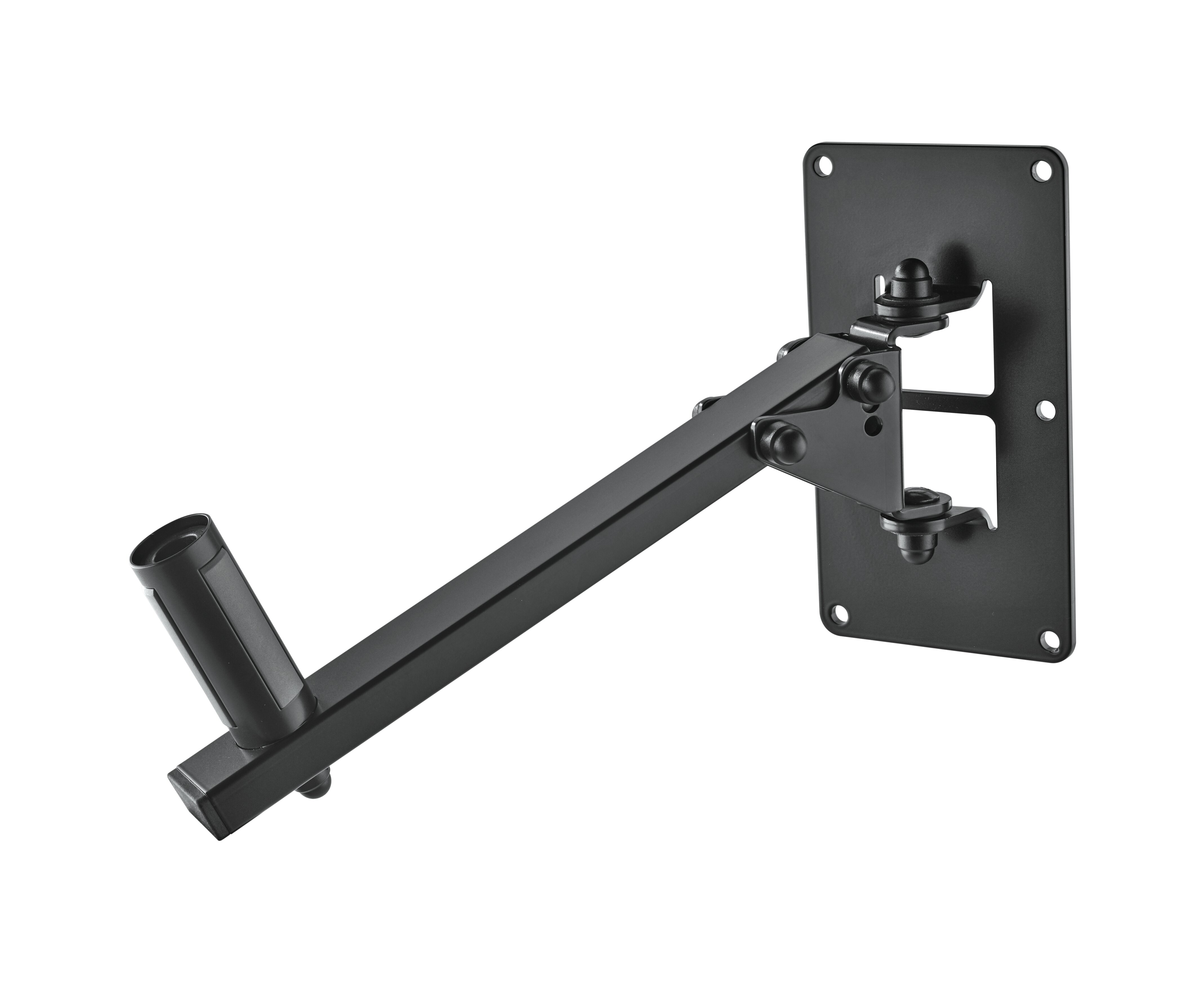

Speaker wall mount

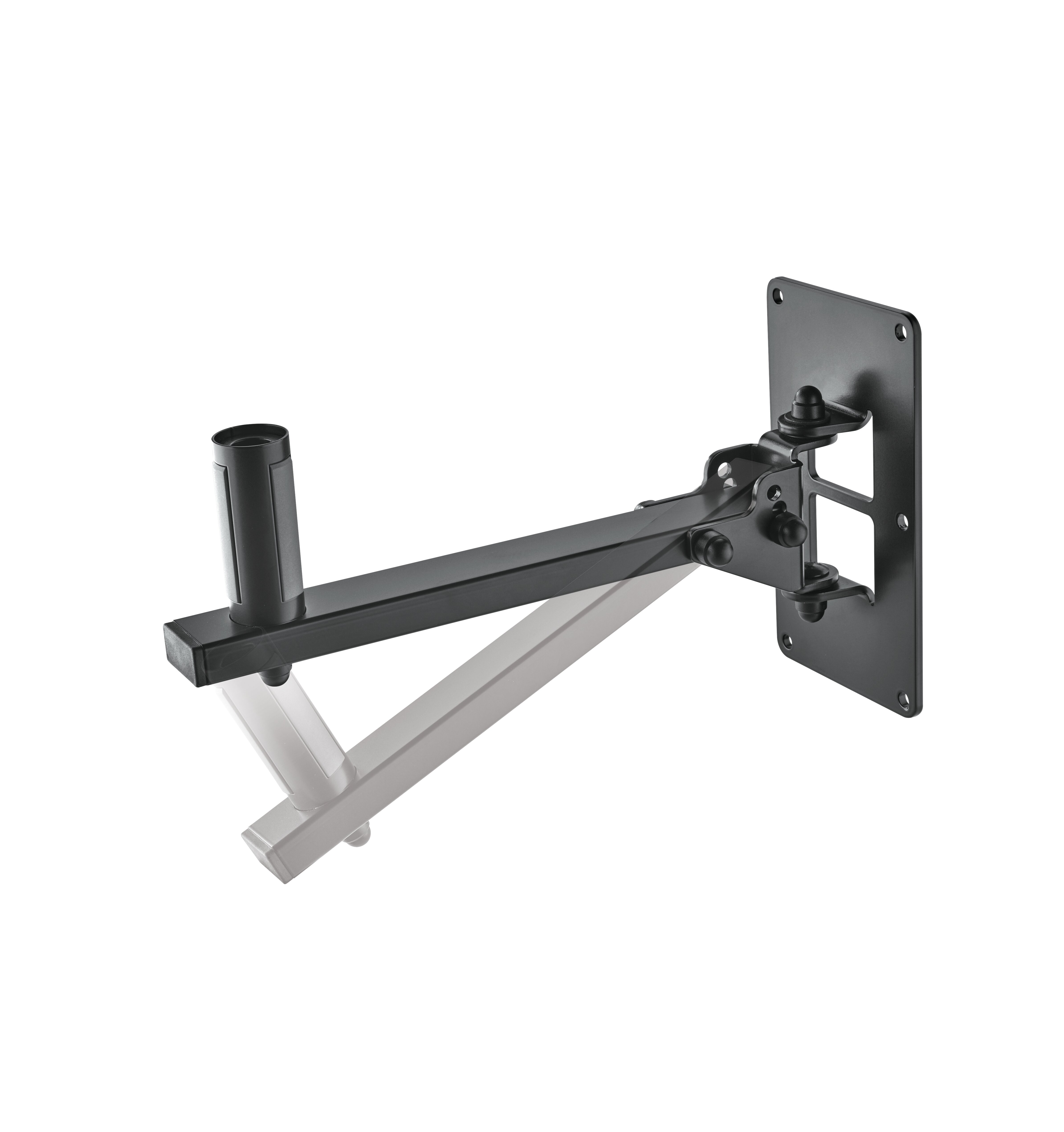

Robust wall mount for holding speakers with flange socket up to 25 kg. The swivel range is continuously adjustable up to 120°. The tilt can be fixed in three steps with 0°, -12.5° and -25°. A patented expanding mandrel ensures a wobble- and vibration-free fit of the speaker. The solid steel... more
Robust wall mount for holding speakers with flange socket up to 25 kg. The swivel range is continuously adjustable up to 120°. The tilt can be fixed in three steps with 0°, -12.5° and -25°. A patented expanding mandrel ensures a wobble- and vibration-free fit of the speaker. The solid steel construction and durable powder coating ensure long-lasting use.
Product variant:
24169-000-55
-
black
Technical Data
Angle of inclination
0° to -25°
EAN
4016842119103
Material
steel
Max. load capacity
25 kg
Mounting
attaches to walls
Mounting bolt
straddling bearing-anchors diameter 35 to 37 mm x 85 mm
Swivel
120 °
Type
black
Wall clearance
359 mm
Wall plate
220 x 120 mm
Wall-to-bolt clearance
314 mm
Weight
2 kg
Special features
patented straddling bearing-anchors; guarantee effective clamping of speaker in any position
