Speaker mount
Speaker mount
Discontinued model
24150

Speaker mount

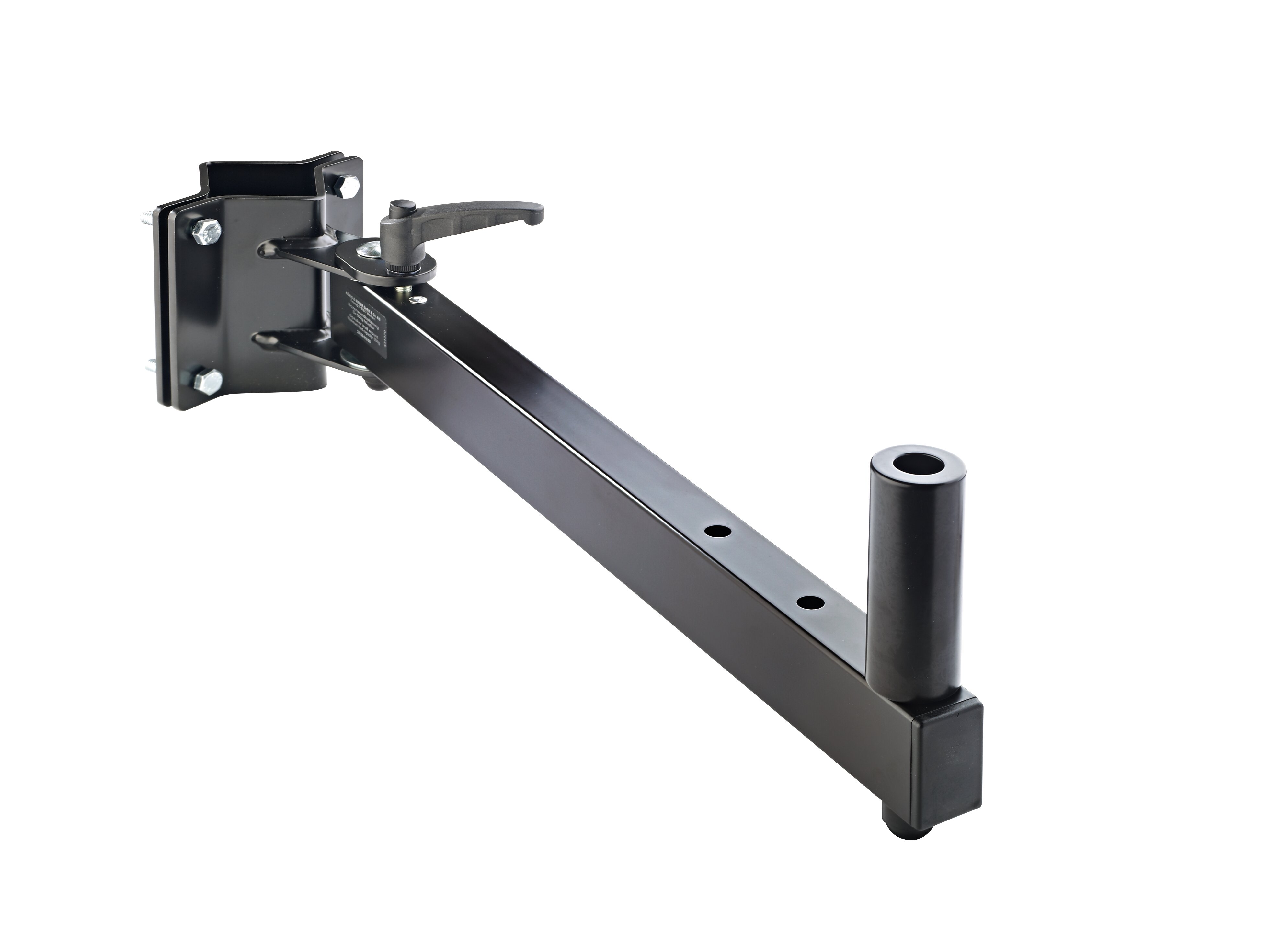

Speaker mount for vertical traverse systems. The tube clamp is suitable for diameters from 45 - 55 mm. Suitable for loudspeakers with 36 mm flange adapters. Max load is 50 kg. Variable swivel up to 240°. There are 3 settings for the loudspeaker distance.

Product variant: 24150-018-55 - black
Data sheet Installation instructions Productlabel

Technical Data

Clamping range

diameter 45 to 55 mm

EAN

4016842102341

Material

steel

Max. load capacity

50 kg

Mounting

clamp

Mounting bolt

diameter 35 mm x 100 mm

Special features

for vertical traverse systems

Swivel

240 °

Type

black

Wall clearance

515 mm

Wall-to-bolt clearance

316/383/451 mm

Weight

3.35 kg

Downloads

Data sheet Installation instructions Package (ZIP)
